Canadian Solar Panel
>
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |

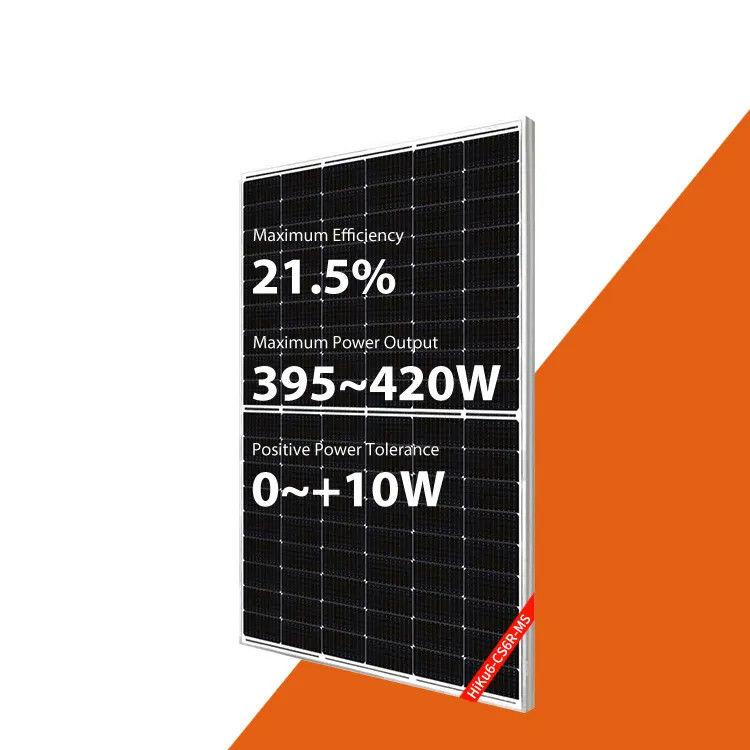

| Model Number | HiKu6 (All-Black)-CS6R-MS |
Canadian Bifacial Double Glass Solar Panels are high-quality photovoltaic modules designed to harness solar energy efficiently. These panels, manufactured by Canadian Solar, a reputable brand in the solar industry, are built with advanced technology and premium materials to deliver reliable and sustainable power generation.
These bifacial solar panels feature a double glass design, which allows for increased energy production compared to traditional single-sided panels. The front side of the panel captures sunlight as usual, while the backside can also generate electricity by reflecting and absorbing the sunlight that passes through the front side. This bifacial technology enhances the overall power output of the system, making it an excellent choice for maximizing energy generation.
With power outputs ranging from 380W to 405W, these solar panels offer significant electricity generation capacity. The high wattage output allows for increased energy production, making them suitable for a wide range of applications, including residential, commercial, and utility-scale installations.
| Model No. | CS6R-395MS | CS6R-400MS | CS6R-405MS | CS6R-410MS | CS6R-415MS | CS6R-420MS |
| Warranty | ||||||
| Product Warranty | 25 Years | |||||
| Power Warranty | 25 Years of 84.8% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 395 Wp | 400 Wp | 405 Wp | 410 Wp | 415 Wp | 420 Wp |
| Voltage at Maximum Power (Vmpp) | 30.6 V | 30.8 V | 31 V | 31.2 V | 31.4 V | 31.6 V |
| Current at Maximum Power (Impp) | 12.91 A | 12.99 A | 13.07 A | 13.15 A | 13.23 A | 13.31 A |
| Open Circuit Voltage (Voc) | 36.6 V | 36.8 V | 37 V | 37.02 V | 37.4 V | 37.6 V |
| Short Circuit Current (Isc) | 13.77 A | 13.85 A | 13.93 A | 14.01 A | 14.09 A | 14.17 A |
| Panel Efficiency | 20.20% | 20.50% | 20.70% | 21% | 21.30% | 21.50% |
| Power Tolerance (Positive) | 2.50% | 2.50% | 2.50% | 2.50% | 2.50% | 2.50% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Electrical Data at NOCT | ||||||
| Maximum Power (Pmax) | 296 Wp | 300 Wp | 304 Wp | 307 Wp | 311 Wp | 315 Wp |
| Voltage at Maximum Power (Vmpp) | 28.7 V | 28.9 V | 29.1 V | 29.2 V | 29.4 V | 29.6 V |
| Current at Maximum Power (Impp) | 10.33 A | 10.39 A | 10.45 A | 10.52 A | 10.58 A | 10.65 A |
| Open Circuit Voltage (Voc) | 34.6 V | 34.8 V | 35 V | 35.1 V | 35.3 V | 35.5 V |
| Short Circuit Current (Isc) | 11.09 A | 11.15 A | 11.21 A | 11.28 A | 11.34 A | 11.41 A |
| Temperature | 41±3 °C | |||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | 40~85 °C | |||||
| Temperature Coefficient of Pmax | 0.34 %/°C | |||||
| Temperature Coefficient of Voc | 0.26 %/°C | |||||
| Temperature Coefficient of Isc | 0.05 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 25 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 1722x1134x30 mm | |||||
| Weight | 21.3 kg | |||||
| Cell Type | PERC | |||||
| Cell Number | 108 | |||||
| Glass Type | Anti-reflection Coating, Tempered | |||||
| Glass Thickness | 3.2 mm | |||||
| Frame Type | Anodized Aluminium Alloy | |||||
| Junction Box Diodes | 3 | |||||
| Junction Box Protection Class | IP 68 | |||||
| Connector Type | MC4 | |||||
| Cable Crossection | 4 mm2 | |||||
| Cable Length | 410 mm | |||||
