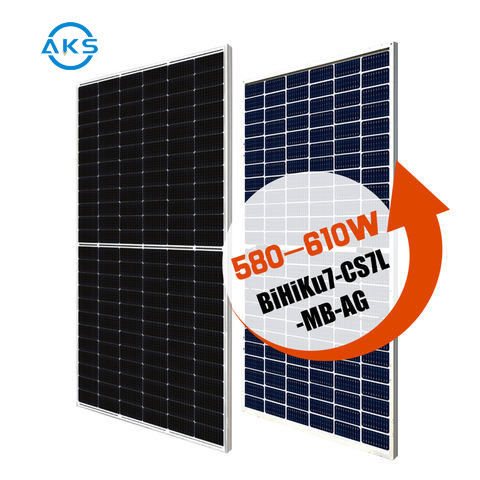

Canadian Solar Panel
>
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | BiHiKu7-CS7L-MB-AG |
Monocrystalline solar panels offer numerous advantages over other types of solar panel technologies, including higher efficiency, longer lifespan, improved aesthetics, better performance in low light conditions, and lower temperature coefficients. These factors combine to make monocrystalline solar panels an attractive choice for homeowners and businesses seeking a reliable and environmentally friendly energy source that offers long-term financial benefits and contributes to a more sustainable future.
High Power Dual Cell PERC Module
· 210 mm wafer + 132 / 120 dual cell + PERC technology
· Module power up to 670 W
· 0.4% more energy yield in module lifetime
Lower BOS cost & LCOE cost
· Reduce 5.7% BOS cost
· 3.5% lower LCOE
· Compatible with mainstream inverters
Enhanced reliability
· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
· Excellent hot spot performance
· Better shading tolerance
| Model No. | CS7L-580MB-AG | CS7L-585MB-AG | CS7L-590MB-AG | CS7L-595MB-AG | CS7L-600MB-AG | CS7L-605MB-AG | CS7L-610MB-AG |
| Warranty | |||||||
| Product Warranty | 12 Years | ||||||
| Power Warranty | 30 Years of 84.95% Output Power | ||||||
| Electrical Data at STC | |||||||
| Maximum Power (Pmax) | 580 Wp | 585 Wp | 590 Wp | 595 Wp | 600 Wp | 605 Wp | 610 Wp |
| Voltage at Maximum Power (Vmpp) | 34.1 V | 34.3 V | 34.5 V | 34.7 V | 34.9 V | 35.1 V | 35.3 V |
| Current at Maximum Power (Impp) | 17.02 A | 17.06 A | 17.11 A | 17.15 A | 17.2 A | 17.25 A | 17.29 A |
| Open Circuit Voltage (Voc) | 40.5 V | 40.7 V | 40.9 V | 41.1 V | 41.3 V | 41.5 V | 41.7 V |
| Short Circuit Current (Isc) | 18.27 A | 18.32 A | 18.37 A | 18.42 A | 18.47 A | 18.52 A | 18.57 A |
| Panel Efficiency | 20.50% | 20.70% | 20.80% | 21% | 21.20% | 21.40% | 21.60% |
| Power Tolerance (Positive) | 2% | 2% | 2% | 2% | 2% | 2% | 2% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||||
| Electrical Data at NOCT | |||||||
| Maximum Power (Pmax) | 435 Wp | 439 Wp | 442 Wp | 446 Wp | 450 Wp | 454 Wp | 457 Wp |
| Voltage at Maximum Power (Vmpp) | 32 V | 32.2 V | 32.3 V | 32.5 V | 32.7 V | 32.9 V | 33.1 V |
| Current at Maximum Power (Impp) | 13.6 A | 13.64 A | 13.7 A | 13.73 A | 13.77 A | 13.8 A | 13.83 A |
| Open Circuit Voltage (Voc) | 38.3 V | 38.5 V | 38.7 V | 38.8 V | 39 V | 39.2 V | 39.4 V |
| Short Circuit Current (Isc) | 14.73 A | 14.77 A | 14.8 A | 14.85 A | 14.89 A | 14.93 A | 14.97 A |
| Temperature | 41±3 °C | ||||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||||
| Thermal Ratings | |||||||
| Operating Temperature Range | 40~85 °C | ||||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||||
| Temperature Coefficient of Voc | 0.26 %/°C | ||||||
| Temperature Coefficient of Isc | 0.05 %/°C | ||||||
| Maximum Ratings | |||||||
| Maximum System Voltage | 1500 V | ||||||
| Series Fuse Rating | 35 A | ||||||
| Material Data | |||||||
| Panel Dimension (H/W/D) | 2172x1303x35 mm | ||||||
| Weight | 34.6 kg | ||||||
| Cell Type | Bifacial, PERC | ||||||
| Cell Number | 120 | ||||||
| Glass Type | Anti-reflection Coating | ||||||
| Glass Thickness | 2 mm | ||||||
| Frame Type | Anodized Aluminium Alloy | ||||||
| Junction Box Diodes | 3 | ||||||
| Junction Box Protection Class | IP 68 | ||||||
| Connector Type | MC4 | ||||||
| Cable Crossection | 4 mm2 | ||||||
| Cable Length | 460 mm | ||||||
