| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |

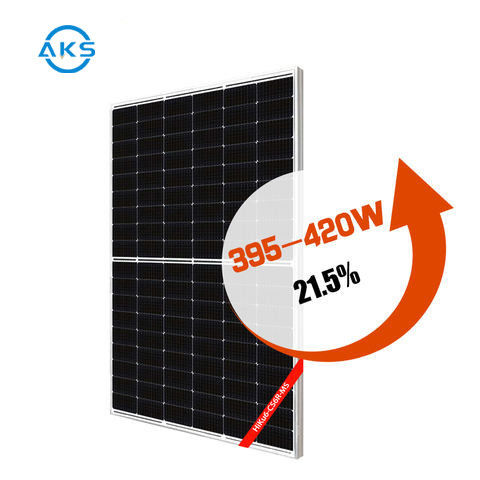

| Model Number | HiKu6 (All-Black)-CS6R-MS |
A monocrystalline solar panel is a solar panel comprising monocrystalline solar cells. The panel derives its name from a cylindrical silicon ingot grown from single-crystal silicon of high purity in the same way as a semiconductor. As the cell is constituted of a single crystal, it provides the electrons more space to move for a better electricity flow. The cylindrical ingot is sliced into wafers forming cells. To maximize the utility of the cells, the circular wafers are wire cut to an octagonal-shaped wafer. These cells have a unique look because of their octagonal shape. They also have a uniform color.
High Power Dual Cell PERC Module
· 210 mm wafer + 132 / 120 dual cell + PERC technology
· Module power up to 670 W
· 0.4% more energy yield in module lifetime
Lower BOS cost & LCOE cost
· Reduce 5.7% BOS cost
· 3.5% lower LCOE
· Compatible with mainstream inverters
Enhanced reliability
· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
· Excellent hot spot performance
· Better shading tolerance
| Model No. | CS6R-395MS | CS6R-400MS | CS6R-405MS | CS6R-410MS | CS6R-415MS | CS6R-420MS |
| Warranty | ||||||
| Product Warranty | 25 Years | |||||
| Power Warranty | 25 Years of 84.8% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 395 Wp | 400 Wp | 405 Wp | 410 Wp | 415 Wp | 420 Wp |
| Voltage at Maximum Power (Vmpp) | 30.6 V | 30.8 V | 31 V | 31.2 V | 31.4 V | 31.6 V |
| Current at Maximum Power (Impp) | 12.91 A | 12.99 A | 13.07 A | 13.15 A | 13.23 A | 13.31 A |
| Open Circuit Voltage (Voc) | 36.6 V | 36.8 V | 37 V | 37.02 V | 37.4 V | 37.6 V |
| Short Circuit Current (Isc) | 13.77 A | 13.85 A | 13.93 A | 14.01 A | 14.09 A | 14.17 A |
| Panel Efficiency | 20.20% | 20.50% | 20.70% | 21% | 21.30% | 21.50% |
| Power Tolerance (Positive) | 2.50% | 2.50% | 2.50% | 2.50% | 2.50% | 2.50% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Electrical Data at NOCT | ||||||
| Maximum Power (Pmax) | 296 Wp | 300 Wp | 304 Wp | 307 Wp | 311 Wp | 315 Wp |
| Voltage at Maximum Power (Vmpp) | 28.7 V | 28.9 V | 29.1 V | 29.2 V | 29.4 V | 29.6 V |
| Current at Maximum Power (Impp) | 10.33 A | 10.39 A | 10.45 A | 10.52 A | 10.58 A | 10.65 A |
| Open Circuit Voltage (Voc) | 34.6 V | 34.8 V | 35 V | 35.1 V | 35.3 V | 35.5 V |
| Short Circuit Current (Isc) | 11.09 A | 11.15 A | 11.21 A | 11.28 A | 11.34 A | 11.41 A |
| Temperature | 41±3 °C | |||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | 40~85 °C | |||||
| Temperature Coefficient of Pmax | 0.34 %/°C | |||||
| Temperature Coefficient of Voc | 0.26 %/°C | |||||
| Temperature Coefficient of Isc | 0.05 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 25 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 1722x1134x30 mm | |||||
| Weight | 21.3 kg | |||||
| Cell Type | PERC | |||||
| Cell Number | 108 | |||||
| Glass Type | Anti-reflection Coating, Tempered | |||||
| Glass Thickness | 3.2 mm | |||||
| Frame Type | Anodized Aluminium Alloy | |||||
| Junction Box Diodes | 3 | |||||
| Junction Box Protection Class | IP 68 | |||||
| Connector Type | MC4 | |||||
| Cable Crossection | 4 mm2 | |||||
| Cable Length | 410 mm | |||||
