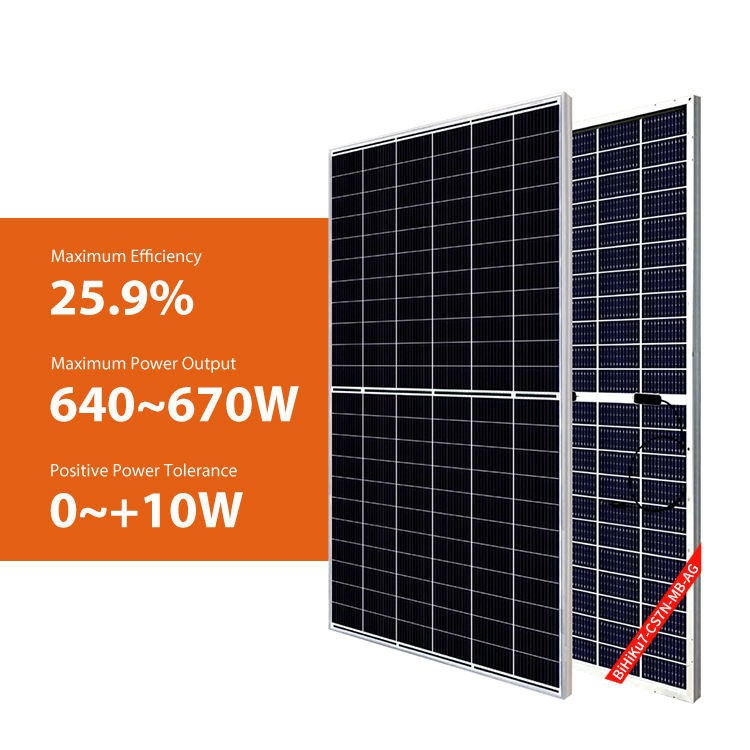

Canadian Solar Panel
>
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | BiHiKu7-CS7N-MB-AG |
Our solar PV modules are designed to suit various applications, including residential, commercial, and utility-scale installations. Whether you're a homeowner looking to reduce your energy costs or a business aiming to achieve sustainability goals, our solar PV modules offer the perfect solution. Our product range includes both monocrystalline and polycrystalline solar PV modules, each with their unique advantages and characteristics. Browse through our diverse product offerings and find the solar PV module that best fits your specific requirements and preferences.
| Model No. | CS7L-640MB-AG | CS7L-645MB-AG | CS7N-650MB-AG | CS7N-655MB-AG | CS7N-660MB-AG | CS7N-665MB-AG | CS7N-670MB-AG |
| Warranty | |||||||
| Product Warranty | 12 Years | ||||||
| Power Warranty | 30 Years of 84.95% Output Power | ||||||
| Electrical Data at STC | |||||||
| Maximum Power (Pmax) | 640 Wp | 645 Wp | 650 Wp | 655 Wp | 660 Wp | 665 Wp | 670 Wp |
| Voltage at Maximum Power (Vmpp) | 37.5 V | 37.7 V | 37.9 V | 38.1 V | 38.3 V | 38.5 V | 38.7 V |
| Current at Maximum Power (Impp) | 17.07 A | 17.11 A | 17.16 A | 17.2 A | 17.24 A | 17.28 A | 17.32 A |
| Open Circuit Voltage (Voc) | 44.6 V | 44.8 V | 45 V | 45.2 V | 45.4 V | 45.6 V | 45.8 V |
| Short Circuit Current (Isc) | 18.31 A | 18.35 A | 18.39 A | 18.43 A | 18.47 A | 18.51 A | 18.55 A |
| Panel Efficiency | 20.60% | 20.80% | 20.90% | 21.10% | 21.20% | 21.40% | 21.60% |
| Power Tolerance (Positive) | 1.50% | 1.50% | 1.50% | 1.50% | 1.50% | 1.50% | 1.50% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||||
| Electrical Data at NOCT | |||||||
| Maximum Power (Pmax) | 480 Wp | 484 Wp | 487 Wp | 491 Wp | 495 Wp | 499 Wp | 502 Wp |
| Voltage at Maximum Power (Vmpp) | 35.2 V | 35.3 V | 35.5 V | 35.7 V | 35.9 V | 36.1 V | 36.3 V |
| Current at Maximum Power (Impp) | 13.64 A | 13.72 A | 13.74 A | 13.76 A | 13.79 A | 13.83 A | 13.85 A |
| Open Circuit Voltage (Voc) | 42.2 V | 42.3 V | 42.5 V | 42.7 V | 42.9 V | 43.1 V | 43.3 V |
| Short Circuit Current (Isc) | 14.77 A | 14.8 A | 14.83 A | 14.86 A | 14.89 A | 14.93 A | 14.96 A |
| Temperature | 41±3 °C | ||||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||||
| Thermal Ratings | |||||||
| Operating Temperature Range | 40~85 °C | ||||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||||
| Temperature Coefficient of Voc | 0.26 %/°C | ||||||
| Temperature Coefficient of Isc | 0.05 %/°C | ||||||
| Maximum Ratings | |||||||
| Maximum System Voltage | 1500 V | ||||||
| Series Fuse Rating | 35 A | ||||||
| Material Data | |||||||
| Panel Dimension (H/W/D) | 2384x1303x35 mm | ||||||
| Weight | 37.9 kg | ||||||
| Cell Type | Bifacial, PERC | ||||||
| Cell Number | 132 | ||||||
| Glass Type | Anti-reflection Coating | ||||||
| Glass Thickness | 2 mm | ||||||
| Frame Type | Anodized Aluminium Alloy | ||||||
| Junction Box Diodes | 3 | ||||||
| Junction Box Protection Class | IP 68 | ||||||
| Connector Type | MC4 | ||||||
| Cable Crossection | 4 mm2 | ||||||
| Cable Length | 460 mm | ||||||
