Canadian Solar Panel
>
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |

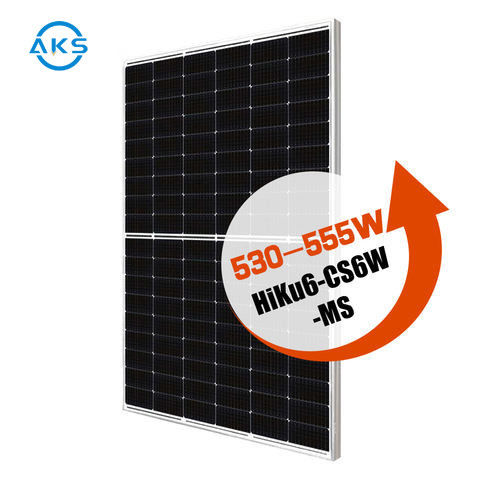

| Model Number | HiKu6-CS6W-MS |
Double-glass solar panels are often connected in series or parallel configurations to form larger solar arrays capable of generating substantial amounts of electricity. By combining multiple double-glass solar panels, homeowners and businesses can create customized solar energy systems that meet their specific energy needs and take full advantage of the increased efficiency and performance offered by this advanced technology.
| Model No. | CS6W-530MS | CS6W-535MS | CS6W-540MS | CS6W-545MS | CS6W-550MS | CS6W-555MS |
| Warranty | ||||||
| Product Warranty | 12 Years | |||||
| Power Warranty | 25 Years of 84.8% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 530 Wp | 535 Wp | 540 Wp | 545 Wp | 550 Wp | 555 Wp |
| Voltage at Maximum Power (Vmpp) | 40.9 V | 41.1 V | 41.3 V | 41.5 V | 41.7 V | 41.9 V |
| Current at Maximum Power (Impp) | 12.96 A | 13.02 A | 13.08 A | 13.14 A | 13.2 A | 13.25 A |
| Open Circuit Voltage (Voc) | 48.8 V | 49 V | 49.2 V | 49.4 V | 49.6 V | 49.8 V |
| Short Circuit Current (Isc) | 13.8 A | 13.85 A | 13.9 A | 13.95 A | 14 A | 14.05 A |
| Panel Efficiency | 20.70% | 20.90% | 21.10% | 21.30% | 21.50% | 21.60% |
| Power Tolerance (Positive) | 2% | 2% | 2% | 2% | 2% | 2% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Electrical Data at NOCT | ||||||
| Maximum Power (Pmax) | 397 Wp | 401 Wp | 405 Wp | 409 Wp | 412 Wp | 416 Wp |
| Voltage at Maximum Power (Vmpp) | 38.3 V | 38.5 V | 38.7 V | 38.9 V | 39.1 V | 39.3 V |
| Current at Maximum Power (Impp) | 10.38 A | 10.42 A | 10.47 A | 10.52 A | 10.55 A | 10.59 A |
| Open Circuit Voltage (Voc) | 46.1 V | 46.3 V | 46.5 V | 46.7 V | 46.9 V | 47.1 V |
| Short Circuit Current (Isc) | 11.13 A | 11.17 A | 11.21 A | 11.25 A | 11.29 A | 11.33 A |
| Temperature | 41±3 °C | |||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | 40~85 °C | |||||
| Temperature Coefficient of Pmax | 0.34 %/°C | |||||
| Temperature Coefficient of Voc | 0.26 %/°C | |||||
| Temperature Coefficient of Isc | 0.05 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 25 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 2261x1134x30 mm | |||||
| Weight | 27.6 kg | |||||
| Cell Type | PERC | |||||
| Cell Number | 144 | |||||
| Glass Type | Anti-reflection Coating, Tempered | |||||
| Glass Thickness | 3.2 mm | |||||
| Frame Type | Anodized Aluminium Alloy | |||||
| Junction Box Diodes | 3 | |||||
| Junction Box Protection Class | IP 68 | |||||
| Connector Type | MC4 | |||||
| Cable Crossection | 4 mm2 | |||||
| Cable Length | 410 mm | |||||
