Canadian Solar Panel
>
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | HiKu6 (All-Black)-CS6R-MS |

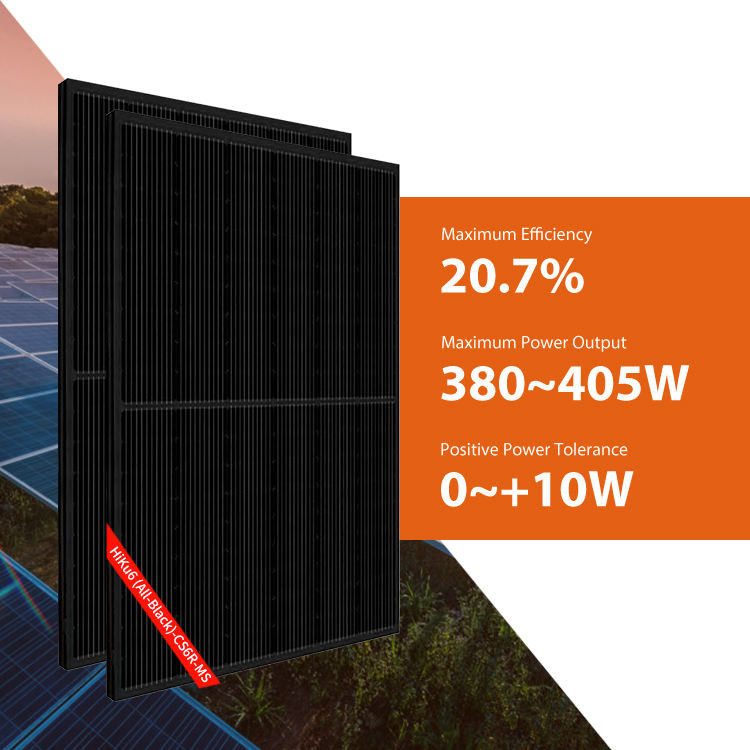

The Canadian 380W, 385W, 390W, 395W, 400W, 405W Solar Panel Bifacial Double Glass Solar Panels are high-quality photovoltaic modules designed to provide efficient and reliable solar power generation. These solar panels are manufactured by Canadian Solar, a reputable and globally recognized solar panel manufacturer.
The bifacial design of these solar panels allows them to generate electricity from both the front and back surfaces, maximizing energy production. The front side of the panels absorbs sunlight as traditional solar panels do, while the back side captures reflected and diffused light, further increasing the overall power output.
With power outputs ranging from 380W to 405W, these solar panels deliver a significant amount of electricity generation. The high wattage output ensures that they can meet the energy demands of residential, commercial, and industrial applications, making them suitable for a wide range of solar installations.
| Model No. | |
|---|---|
| Warranty | |
| Product Warranty | 25 Years |
| Power Warranty | 25 Years of 84.8% Output Power |
| Electrical Data at STC | |
| Maximum Power (Pmax) | |
| Voltage at Maximum Power (Vmpp) | |
| Current at Maximum Power (Impp) | |
| Open Circuit Voltage (Voc) | |
| Short Circuit Current (Isc) | |
| Panel Efficiency | |
| Power Tolerance (Positive) | |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |
| Electrical Data at NOCT | |
| Maximum Power (Pmax) | |
| Voltage at Maximum Power (Vmpp) | |
| Current at Maximum Power (Impp) | |
| Open Circuit Voltage (Voc) | |
| Short Circuit Current (Isc) | |
| Temperature | 42±3 °C |
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |
| Thermal Ratings | |
| Operating Temperature Range | 40~85 °C |
| Temperature Coefficient of Pmax | 0.34 %/°C |
| Temperature Coefficient of Voc | 0.25 %/°C |
| Temperature Coefficient of Isc | 0.06 %/°C |
| Maximum Ratings | |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Material Data | |
| Panel Dimension (H/W/D) | 1722x1134x30 mm |
| Weight | 21.3 kg |
| Cell Type | PERC |
| Cell Number | 108 |
| Glass Type | Anti-reflection Coating, Tempered |
| Glass Thickness | 3.2 mm |
| Frame Type | Anodized Aluminium Alloy |
| Junction Box Diodes | 3 |
| Junction Box Protection Class | IP 68 |
| Connector Type | MC4 |
| Cable Crossection | 4 mm2 |
| Cable Length | 410 mm |
