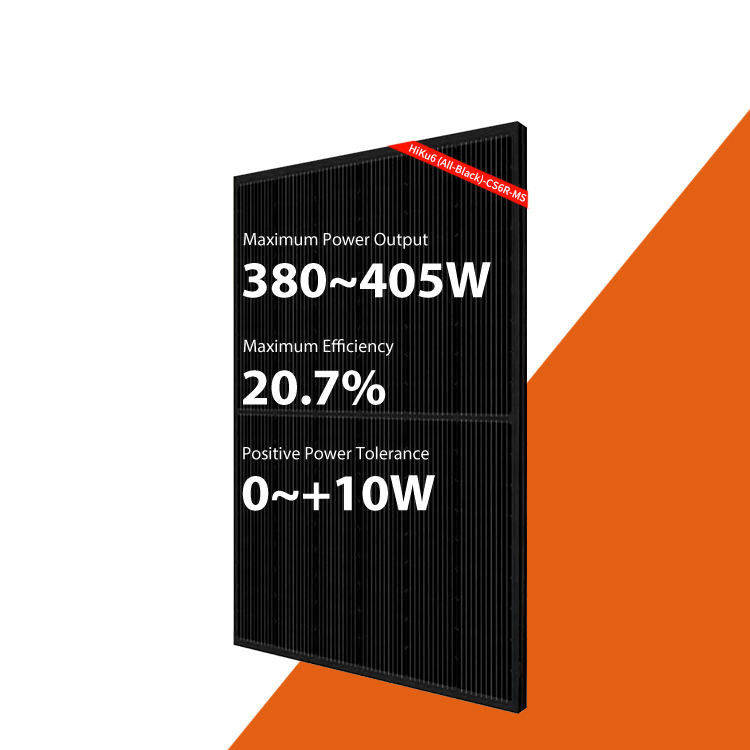

Canadian Silicon Solar Pv Module 380W 405W Bifacial Mono Perc Double Glass Module
  • Canadian Silicon Solar Pv Module 380W 405W Bifacial Mono Perc Double Glass Module
Canadian Silicon Solar Pv Module 380W 405W Bifacial Mono Perc Double Glass Module

Canadian Silicon Solar Pv Module 380W 405W Bifacial Mono Perc Double Glass Module

Place of Origin Jiangsu, China
Brand Name AKS
Certification CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Model Number HiKu6 (All-Black)-CS6R-MS
Product Details
Brand Name:
HiKu6 (All-Black)-CS6R-MS
Cell Size:
182mmx182mm
Panel Dimensions:
1722x1134x30 Mm
Frame:
Anodized Aluminum Alloy
Front Cover:
3.2 Mm Tempered Glass With Anti-reflective Coating
Cell Type:
Mono-crystalline
Certificate:
TUV CGC CE
Panel Efficiency:
20.70%
Connector Type:
MC4
Junction Box:
IP68 Rated
Operating Temperature:
-40°C To +85°C
Warranty:
25-year Linear Power Output Warranty
Weight:
21.3kg
High Light:

Canadian Silicon Solar Pv Module 380W

,

Silicon Solar Pv Module 405W

,

405W Bifacial Mono Perc Double Glass Module

Payment & Shipping Terms
Minimum Order Quantity
30pcs
Price
$0.18~0.20/Watts
Packaging Details
pallet
Delivery Time
To be negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200000 Watt/Watts per Week
Product Description

Canadian 380W 385W 390W 395W 400W 405W New Arrival Solar Panel Bifacial Double Glass Solar Panel In Stock​

The Canadian Silicon Solar PV Module 380W-405W Bifacial Mono PERC Double Glass Module is a high-performance photovoltaic module designed to efficiently convert solar energy into electricity. Manufactured by Canadian Solar, a reputable solar panel manufacturer, these modules are built with advanced technology and premium materials to deliver reliable and sustainable power generation.



With power outputs ranging from 380W to 405W, these solar panels offer significant electricity generation capacity. The high wattage output allows for increased energy production, making them suitable for various applications, including residential, commercial, and utility-scale installations.



Model No.
CS6R-380MS CS6R-385MS CS6R-390MS CS6R-395MS CS6R-400MS CS6R-405MS
Warranty
Product Warranty 25 Years
Power Warranty 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax)
380 Wp 385 Wp 390 Wp 395 Wp 400 Wp 405 Wp
Voltage at Maximum Power (Vmpp)
30 V 30.2 V 30.4 V 30.6 V 30.8 V 31 V
Current at Maximum Power (Impp)
12.69 A 12.77 A 12.84 A 12.91 A 12.99 A 13.07 A
Open Circuit Voltage (Voc)
36 V 36.2 V 36.4 V 36.6 V 36.8 V 37 V
Short Circuit Current (Isc)
13.55 A 13.63 A 13.7 A 13.77 A 13.85 A 13.93 A
Panel Efficiency
19.5 % 19.7 % 20 % 20.2 % 20.5 % 20.7 %
Power Tolerance (Positive)
+ 2.5 % + 2.5 % + 2.5 % + 2.5 % + 2.5 % + 2.5 %
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)
284 Wp 288 Wp 291 Wp 295 Wp 299 Wp 303 Wp
Voltage at Maximum Power (Vmpp)
28.1 V 28.3 V 28.4 V 28.6 V 28.8 V 29 V
Current at Maximum Power (Impp)
10.12 A 10.19 A 10.26 A 10.33 A 10.39 A 10.45 A
Open Circuit Voltage (Voc)
33.9 V 34.1 V 34.2 V 34.4 V 34.6 V 34.7 V
Short Circuit Current (Isc)
10.91 A 10.98 A 11.05 A 11.11 A 11.17 A 11.23 A
Temperature 42±3 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range 40~85 °C
Temperature Coefficient of Pmax 0.34 %/°C
Temperature Coefficient of Voc 0.25 %/°C
Temperature Coefficient of Isc 0.06 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 25 A
Material Data
Panel Dimension (H/W/D) 1722x1134x30 mm
Weight 21.3 kg
Cell Type PERC
Cell Number 108
Glass Type Anti-reflection Coating, Tempered
Glass Thickness 3.2 mm
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 410 mm

Canadian Silicon Solar Pv Module 380W 405W Bifacial Mono Perc Double Glass Module 0Canadian Silicon Solar Pv Module 380W 405W Bifacial Mono Perc Double Glass Module 1

Canadian Silicon Solar Pv Module 380W 405W Bifacial Mono Perc Double Glass Module 2

Canadian Silicon Solar Pv Module 380W 405W Bifacial Mono Perc Double Glass Module 3

Canadian Silicon Solar Pv Module 380W 405W Bifacial Mono Perc Double Glass Module 4Canadian Silicon Solar Pv Module 380W 405W Bifacial Mono Perc Double Glass Module 5
