| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |

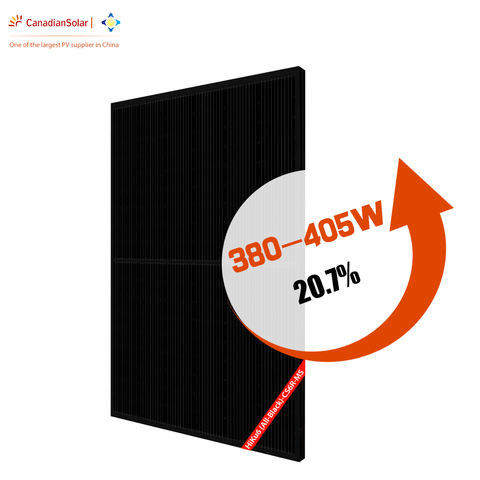

| Model Number | HiKu6 (All-Black)-CS6R-MS |
Monocrystalline solar panels usually have the highest efficiency and power capacity out of all types of solar panels. Monocrystalline panel efficiencies can range from 17% to 20%.
Because monocrystalline solar cells are made out of a single crystal of silicon, electrons can flow easier through the cell, which makes the PV cell efficiency higher than other types of solar panels. The higher efficiency of monocrystalline solar panels means that they require less space to reach a given power capacity. So, monocrystalline solar panels will usually have a higher power output rating than either polycrystalline or thin-film modules.
In other words, you would need fewer monocrystalline solar panels in your solar power system to generate the same amount of power that, say, a greater number of polycrystalline solar panels would. This makes monocrystalline solar panels ideal for people with limited roof space.
High Power Dual Cell PERC Module
· 210 mm wafer + 132 / 120 dual cell + PERC technology
· Module power up to 670 W
· 0.4% more energy yield in module lifetime
Lower BOS cost & LCOE cost
· Reduce 5.7% BOS cost
· 3.5% lower LCOE
· Compatible with mainstream inverters
Enhanced reliability
· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
· Excellent hot spot performance
· Better shading tolerance
| Model No. | |
|---|---|
| Warranty | |
| Product Warranty | 25 Years |
| Power Warranty | 25 Years of 84.8% Output Power |
| Electrical Data at STC | |
| Maximum Power (Pmax) | |
| Voltage at Maximum Power (Vmpp) | |
| Current at Maximum Power (Impp) | |
| Open Circuit Voltage (Voc) | |
| Short Circuit Current (Isc) | |
| Panel Efficiency | |
| Power Tolerance (Positive) | |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |
| Electrical Data at NOCT | |
| Maximum Power (Pmax) | |
| Voltage at Maximum Power (Vmpp) | |
| Current at Maximum Power (Impp) | |
| Open Circuit Voltage (Voc) | |
| Short Circuit Current (Isc) | |
| Temperature | 42±3 °C |
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |
| Thermal Ratings | |
| Operating Temperature Range | 40~85 °C |
| Temperature Coefficient of Pmax | 0.34 %/°C |
| Temperature Coefficient of Voc | 0.25 %/°C |
| Temperature Coefficient of Isc | 0.06 %/°C |
| Maximum Ratings | |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Material Data | |
| Panel Dimension (H/W/D) | 1722x1134x30 mm |
| Weight | 21.3 kg |
| Cell Type | PERC |
| Cell Number | 108 |
| Glass Type | Anti-reflection Coating, Tempered |
| Glass Thickness | 3.2 mm |
| Frame Type | Anodized Aluminium Alloy |
| Junction Box Diodes | 3 |
| Junction Box Protection Class | IP 68 |
| Connector Type | MC4 |
| Cable Crossection | 4 mm2 |
| Cable Length | 410 mm |
