Place of Origin	Jiangsu, China
Brand Name	AKS
Certification	CGC，ISO9001:2015，TUV SUD，PV，CNAS，

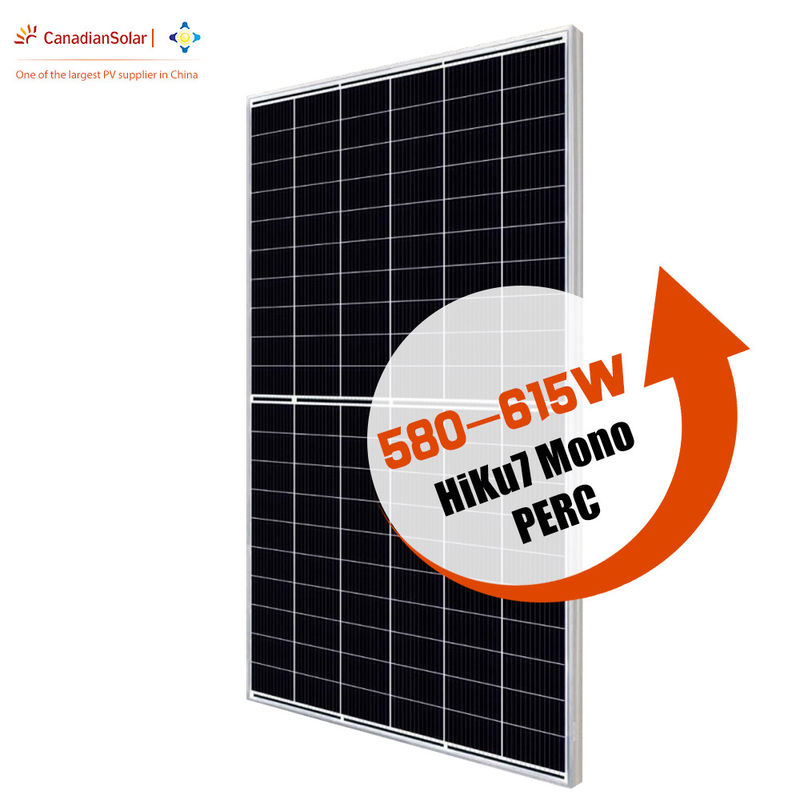

Model Number	HiKu7-CS7L-MS

Model No.	CS7L-580MS-R	CS7L-585MS-R	CS7L-590MS-R	CS7L-595MS-R	CS7L-600MS-R	CS7L-605MS-R	CS7L-610MS-R
Warranty
Product Warranty	12 Years
Power Warranty	25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax)	580 Wp	585 Wp	590 Wp	595 Wp	600 Wp	605 Wp	610 Wp
Voltage at Maximum Power (Vmpp)	34.1 V	34.3 V	34.5 V	34.7 V	34.9 V	35.1 V	35.3 V
Current at Maximum Power (Impp)	17.02 A	17.06 A	17.11 A	17.15 A	17.2 A	17.25 A	17.29 A
Open Circuit Voltage (Voc)	40.5 V	40.7 V	40.9 V	41.1 V	41.3 V	41.5 V	41.7 V
Short Circuit Current (Isc)	18.27 A	18.32 A	18.37 A	18.42 A	18.47 A	18.52 A	18.57 A
Panel Efficiency	20.50%	20.70%	20.80%	21%	21.20%	21.40%	21.60%
Power Tolerance (Positive)	2%	2%	2%	2%	2%	2%	2%
	Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)	435 Wp	439 Wp	442 Wp	446 Wp	450 Wp	454 Wp	457 Wp
Voltage at Maximum Power (Vmpp)	32 V	32.2 V	32.3 V	32.5 V	32.7 V	32.9 V	33.1 V
Current at Maximum Power (Impp)	13.6 A	13.62 A	13.7 A	13.73 A	13.77 A	13.8 A	13.93 A
Open Circuit Voltage (Voc)	38.3 V	38.5 V	38.7 V	38.8 V	39 V	39.2 V	39.4 V
Short Circuit Current (Isc)	14.73 A	14.77 A	14.8 A	14.85 A	14.89 A	14.93 A	14.97 A
Temperature	41±3 °C
	Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range	40~85 °C
Temperature Coefficient of Pmax	0.34 %/°C
Temperature Coefficient of Voc	0.26 %/°C
Temperature Coefficient of Isc	0.05 %/°C
Maximum Ratings
Maximum System Voltage	1500 V
Series Fuse Rating	30 A
Material Data
Panel Dimension (H/W/D)	2172x1303x35 mm
Weight	31 kg
Cell Type	PERC
Cell Number	120
Glass Type	Anti-reflection Coating, Tempered
Glass Thickness	3.2 mm
Frame Type	Anodized Aluminium Alloy
Junction Box Diodes	3
Junction Box Protection Class	IP 68
Connector Type	MC4
Cable Crossection	6 mm2
Cable Length	460 mm

Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
