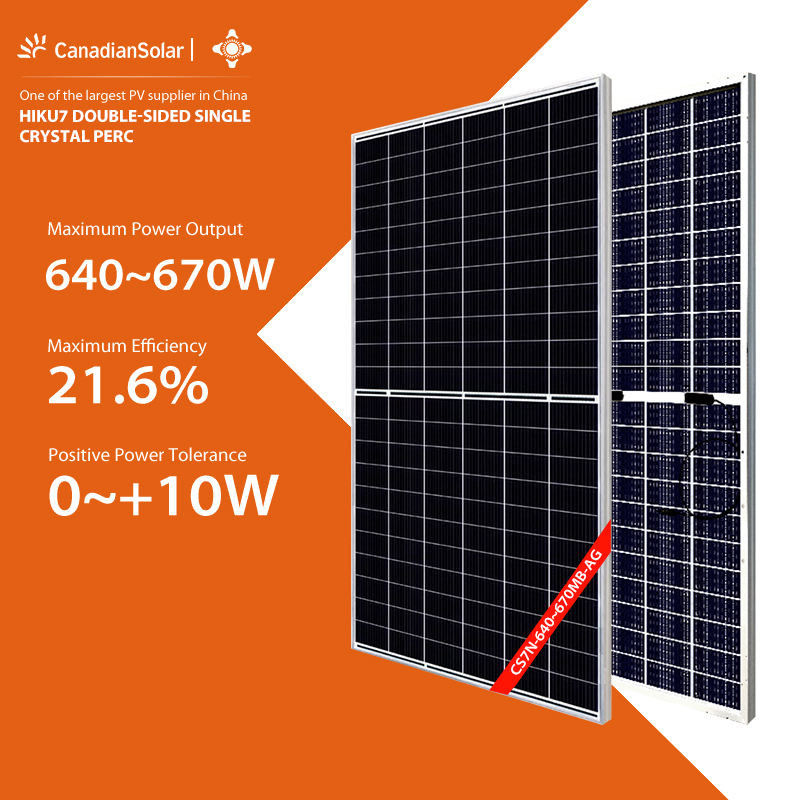

640w - 670w Half Cell Mono Solar Panel Warehouse
  • 640w - 670w Half Cell Mono Solar Panel Warehouse
640w - 670w Half Cell Mono Solar Panel Warehouse

640w - 670w Half Cell Mono Solar Panel Warehouse

Place of Origin Jiangsu, China
Brand Name AKS
Certification CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Model Number BiHiKu7-CS7N-MB-AG
Product Details
Brand Name:
BiHiKu7-CS7N-MB-AG
Cell Size:
210mmx210mm
Panel Dimensions:
2384x1303x33 Mm
Front Glass:
2.0 Mm Heat Strengthened Glass With Anti-reflective Coating
Cable:
4.0 Mm²(IEC),12 AWG(UL)
J-Box:
IP68,3 Bypass Diodes
Back Glass:
2.0 Mm Heat Strengthened Glass
Panel Efficiency:
25.90%
Type:
PERC, Half Cell, Bifacial, Double-glass
Cable Length(Including Onnector):
460 Mm (18.1 In)(+)/340 Mm(13.4 In)(-) Or Customized Length*
Highlight:

670w Half Cell Mono Solar Panel

,

640w Half Cell Mono Solar Panel

,

640w Warehouse Canadian Solar Panel

Payment & Shipping Terms
Minimum Order Quantity
1
Price
To be negotiated
Packaging Details
pallet
Delivery Time
To be negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200000 Watt/Watts per Week
Product Description

Canadian 640w 645w 650w 655w 660w 665w 670w Warehouse Solar Panel Black Half Cell Mono Solar Panel

  • Price: Monocrystalline solar panels for sale will be relatively more costly compared to polycrystalline solar panels. You should draw a careful cost-benefit analysis and determine your budget to make the right choice for you.
  • Efficiency: Among the key advantages of monocrystalline solar panels is their high-efficiency rate. These products are made from superior-grade silicone, which has a single-crystal structure. Therefore, electricity flow has minimal resistance in these cells. On the other hand, although one of the advantages of polycrystalline solar panels is their lower price, their efficiency is also lower (between 14 and 16 percent) due to their reduced silicon purity.
  • Lifespan: When you compare the initial installation costs between monocrystalline vs. polycrystalline solar panels, you should also look at the average lifespan of each. Monocrystalline solar panel manufacturers will usually offer a 25-year warranty because of the longer lifespan of the product. On this parameter of lifespan, polycrystalline solar panels are not very different, but the warranty period offered by the manufacturers may vary.



High Power Dual Cell PERC Module

· 210 mm wafer + 132 / 120 dual cell + PERC technology
· Module power up to 670 W
· 0.4% more energy yield in module lifetime


Lower BOS cost & LCOE cost

· Reduce 5.7% BOS cost
· 3.5% lower LCOE
· Compatible with mainstream inverters


Enhanced reliability

· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
· Excellent hot spot performance
· Better shading tolerance

Model No. CS7L-640MB-AG CS7L-645MB-AG CS7N-650MB-AG CS7N-655MB-AG CS7N-660MB-AG CS7N-665MB-AG CS7N-670MB-AG
Warranty
Product Warranty 12 Years
Power Warranty 30 Years of 84.95% Output Power
Electrical Data at STC
Maximum Power (Pmax) 640 Wp 645 Wp 650 Wp 655 Wp 660 Wp 665 Wp 670 Wp
Voltage at Maximum Power (Vmpp) 37.5 V 37.7 V 37.9 V 38.1 V 38.3 V 38.5 V 38.7 V
Current at Maximum Power (Impp) 17.07 A 17.11 A 17.16 A 17.2 A 17.24 A 17.28 A 17.32 A
Open Circuit Voltage (Voc) 44.6 V 44.8 V 45 V 45.2 V 45.4 V 45.6 V 45.8 V
Short Circuit Current (Isc) 18.31 A 18.35 A 18.39 A 18.43 A 18.47 A 18.51 A 18.55 A
Panel Efficiency 20.60% 20.80% 20.90% 21.10% 21.20% 21.40% 21.60%
Power Tolerance (Positive) 1.50% 1.50% 1.50% 1.50% 1.50% 1.50% 1.50%
  Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax) 480 Wp 484 Wp 487 Wp 491 Wp 495 Wp 499 Wp 502 Wp
Voltage at Maximum Power (Vmpp) 35.2 V 35.3 V 35.5 V 35.7 V 35.9 V 36.1 V 36.3 V
Current at Maximum Power (Impp) 13.64 A 13.72 A 13.74 A 13.76 A 13.79 A 13.83 A 13.85 A
Open Circuit Voltage (Voc) 42.2 V 42.3 V 42.5 V 42.7 V 42.9 V 43.1 V 43.3 V
Short Circuit Current (Isc) 14.77 A 14.8 A 14.83 A 14.86 A 14.89 A 14.93 A 14.96 A
Temperature 41±3 °C
  Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range 40~85 °C
Temperature Coefficient of Pmax 0.34 %/°C
Temperature Coefficient of Voc 0.26 %/°C
Temperature Coefficient of Isc 0.05 %/°C
Maximum Ratings
Maximum System Voltage 1500 V
Series Fuse Rating 35 A
Material Data
Panel Dimension (H/W/D) 2384x1303x35 mm
Weight 37.9 kg
Cell Type Bifacial, PERC
Cell Number 132
Glass Type Anti-reflection Coating
Glass Thickness 2 mm
Frame Type Anodized Aluminium Alloy
Junction Box Diodes 3
Junction Box Protection Class IP 68
Connector Type MC4
Cable Crossection 4 mm2
Cable Length 460 mm

640w - 670w Half Cell Mono Solar Panel Warehouse 0640w - 670w Half Cell Mono Solar Panel Warehouse 1



640w - 670w Half Cell Mono Solar Panel Warehouse 2

640w - 670w Half Cell Mono Solar Panel Warehouse 3

640w - 670w Half Cell Mono Solar Panel Warehouse 4640w - 670w Half Cell Mono Solar Panel Warehouse 5



FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc


Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
