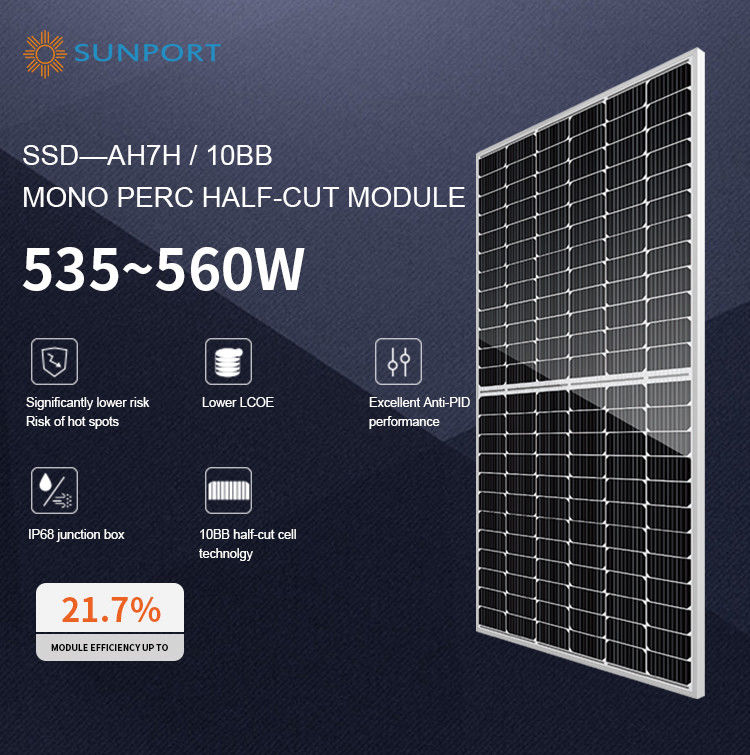

Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module
  • Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module
  • Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module
  • Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module
  • Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module
  • Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module
  • Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module
Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module

Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module

Place of Origin Jiangsu, China
Brand Name Sunport
Certification CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Model Number AH7H
Product Details
Efficiency:
21.7%
IP Rating:
IP67
Installation:
Roof Mounted
Lifespan:
25 Years
Material:
Aluminum Alloy
Operating Temperature:
-40℃ To 85℃
Power Output:
535w 540w 545w 550w 555w
Product Name:
Sunport Solar Panels
Solar Cells:
Monocrystalline
Warranty:
25 Years
Weight:
27.5kg
High Light:

Monocrystalline Bifacial Solar Module

,

Sunport Bifacial Solar Module

,

Sunport Solar Module 560W

Payment & Shipping Terms
Minimum Order Quantity
30pcs
Price
To be negotiated
Packaging Details
pallet
Delivery Time
To be negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200000 Watt/Watts per Week
Product Description

Sunport AH7H/10BB 535W-560W Monocrystalline High-Efficiency Bifacial Solar Module



Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 0






Specification

Power Class
 530 535 540 550
Module Efficiency(%) 20.5 20.7 20.9 21.1
Tolerance(W) 0~+5 0~+5 0~+5 0~+5
Test Environment STC NOTC STC NOTC STC NOTC STC NOTC
Maximum Power Pmax(W) 530 395 535 398 540 400 545 405
Open Circuit Voltage Voc(V) 49 46.3 49.2 46.4 49.3 46.6 49.5 46.7
Short Circuit Current Isa(A) 13.8 11.14 13.88 11.21 13.97 11.28 14.05 11.35
Maximum Power Voltage Vm(V) 40.5 37.6 40.6 37.8 40.7 37.9 40.9 38
Maximum Power Current Im(A) 13.09 10.5 13.18 10.53 13.27 10.55 13.33 10.66
Cell Type (mm) 182*91(10BB Mono-Crystaline Silicon)
Cell Orientation (Pcs) 144(6*24)
Maximum System Voltage (V) DC1500
Temp.Coeff.of Voc (%/℃) -0.285
Temp.Coeff.of Isc (%/℃) 0.055
Temp.Coeff.of Pm (%/℃) -0.365
Operating Temperature (℃) -40 to 85
Nominal Operating Cell Temperature(NOCT) (℃) 45 ±2
Max.Series Fuse (A) 20
Pressure Bearing (Pa) 5400
Wind Bearing (Pa) 2400
STC: Irradiance 1000W/m2, Cell temperature 25 ℃, AM1.5NOCT: Irradiance 800W/m2, Ambient temperature 20 ℃, Wind
speed 1m/s
MATERIAL DETAILS
Frame Anodized aluminum Glass 3.2mm low-iron tempered suede
glass
Cell 6*20pcs 182*91mm mono solar cellmm mono solar cell Junction Box IP≥68, 3 diodes
Diode quantity 3 Cable&Connector 4mm², EVO2 or EVO2 compatible
Cable length 300mm or as customer’s requirements
PACKING DETAILS
Dimension 2278*1133*35mm Weight 28kg

Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 1

Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 2Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 3


TECHNOLOGY COMPARISON
Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.
— Structural Feature —
Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 4
MWT
Positive and negative electrodes are both on the rear side of solar cell
Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 5
Conventional
Positive and negative electrodes are located on opposite sides of the cell
— Cell Structure —
Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 6
MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %
Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 7
Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited
— Module Encapsulation —
Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 8
Replace conventional soldering with conductive foil and 2D encapsulation structure
Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 9
Conventional Cells connected by string ribbons



Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 10



Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 11Sunport AH7H/10BB 535W-560W Monocrystalline Bifacial Solar Module 12



FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
