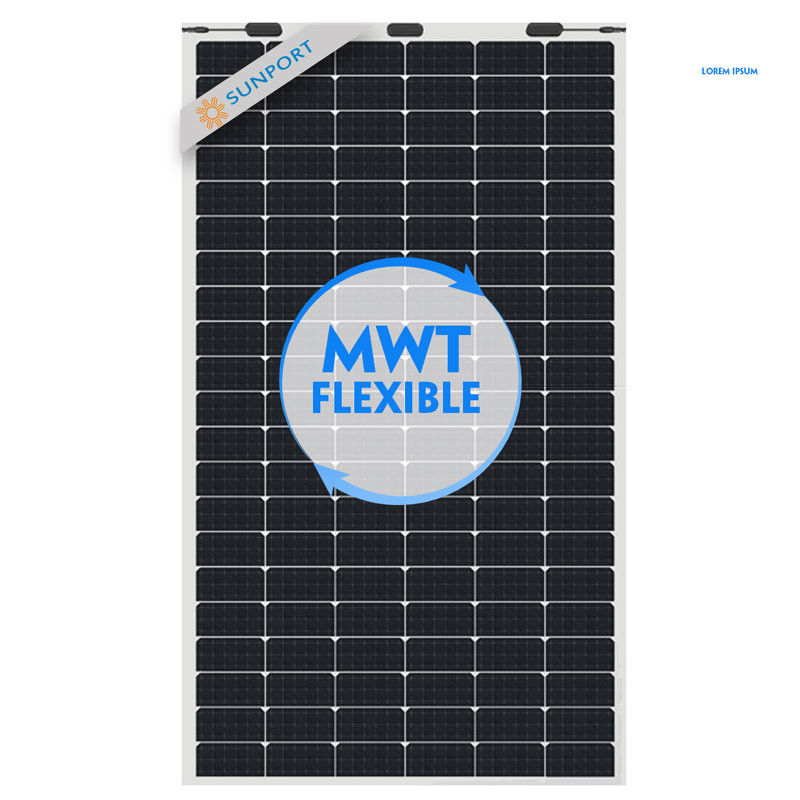

Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential
  • Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential
  • Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential

Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential

Place of Origin Jiangsu, China
Brand Name AKS
Certification CGC,ISO9001:2015,TUV SUD,PV,CNAS,
Model Number QHES
Product Details
Product Name:
MWT Flexible Solar Panles
Model Number:
QHES
Cell Size:
126(21x6)
Panel Efficiency:
21.8 %
Installation Module Dimension:
1840mmx1040mmx2.5mm
Brand Name:
Sunport
Encapsulant:
POE
High Light:

Industrial Sunport Solar Panels

,

Sunport Solar Panels Pv Modules Residential

,

MWT Flexible Solar Module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
To be negotiated
Packaging Details
pallet
Delivery Time
To be negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200000 Watt/Watts per Week
Product Description

Sunport Power Home Use Solar Power Energy Storage System Residential Solution Solar Energy Module System Monocrystalline

Monocrystalline solar panels have earned their reputation as highly efficient and reliable performers in the renewable energy market. Made from a single crystal structure, these solar panels boast greater purity and efficiency compared to other panel types. This superior efficiency allows monocrystalline solar panels to produce more power per square foot, making them an appealing option for those with limited space or desiring optimal energy production. Many consumers also prefer the sleek black design of these panels for its aesthetic value. With their durability and long-lasting performance, monocrystalline solar panels make a worthwhile investment for those interested in harnessing the power of the sun.
Electrical Characteristics at Standard Test Conditions(STC)
Spec/Model
Unit
SPP365QHES
SPP370QHES
SPP375QHES
SPP380QHES
SPP385QHES
Max-Power(Pm)
W
365
370
375
380
385
Power Tolerance
W
0~+5
Max-Power Voltage(Vm)
V
34.9
35.1
35.3
35.5
35.7
Max-Power Current(lm)
A
10.46
10.54
10.62
10.70
10.78
Open-Circuit Voltage(Voc)
V
42.4
42.6
42.8
43.0
43.2
Short-Circuit Current(lsc)
A
11.09
11.16
11.23
11.30
11.35
Module Efficiency(qm)
%
20.7
21.0
21.2
21.5
21.8


Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 0Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 1Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 2



TECHNOLOGY COMPARISON
Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.

— Structural Feature —
Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 3
MWT
Positive and negative electrodes are both on the rear side of solar cell
Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 4
Conventional
Positive and negative electrodes are located on opposite sides of the cell
— Cell Structure —
Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 5
MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %
Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 6
Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited
— Module Encapsulation —
Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 7
Replace conventional soldering with conductive foil and 2D encapsulation structure
Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 8
Conventional Cells connected by string ribbons

Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 9

Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 10Industrial Sunport Solar Panels MWT Flexible Solar Module Pv Modules Residential 11



FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc



Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
