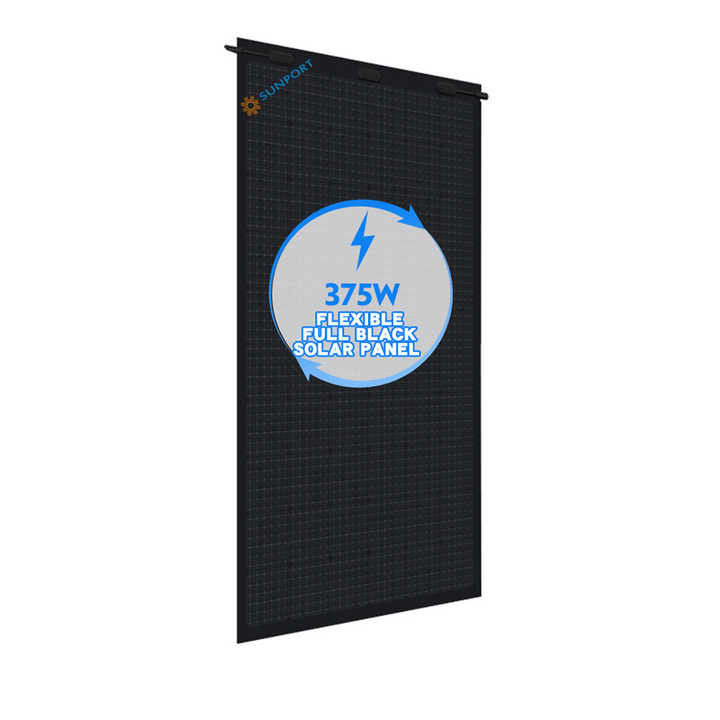

Sunport Flexible Solar Panel 360W - 380W MWT Solar Panel Full Black

SUNPORT QHES(B) S-Flex 6II 360-380W MWT Monocrystalline Silicon Golden Supplier Flexible Solar Panels Sunpower

Monocrystalline solar panels have emerged as a top contender for individuals and businesses seeking efficient and dependable renewable energy sources. Manufactured using a single crystal structure, these solar panels offer higher purity and efficiency than polycrystalline alternatives. This superior efficiency enables monocrystalline solar panels to produce more power per square foot, making them an excellent option for space-limited installations or those desiring maximum energy production. The sleek black appearance of these panels also adds to their appeal among consumers. With proven durability and long-lasting performance, monocrystalline solar panels are a wise investment for anyone looking to tap into solar energy.

Electrical Characteristics at Standard Test Conditions(STC)
Spec/Model	Unit	SPP360QHES	SPP365QHES	SPP370QHES	SPP375QHES	SPP380QHES
Max-Power(Pm)	W	360	365	370	375	380
Power Tolerance	W	0~5%
Max-Power Voltage(Vm)	V	34.7	34.9	35.1	35.3	35.5
Max-Power Current(lm)	A	10.37	10.46	10.54	10.62	10.70
Open-Circuit Voltage(Voc)	V	42.4	42.6	42.8	43.0	43.2
Short-Circuit Current(lsc)	A	10.94	11.02	11.10	11.18	11.26
Module Efficiency(qm)	%	20.4	20.7	21.0	21.2	21.5



TECHNOLOGY COMPARISON

Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.



— Structural Feature —

MWT

Positive and negative electrodes are both on the rear side of solar cell

Conventional

Positive and negative electrodes are located on opposite sides of the cell

— Cell Structure —

MWT

Busbar-free design exhibits higher power output by decreasing shading area up to 3 %

Conventional

Conventional design covers more cell surface from the main busbars, therefore the power output is limited

— Module Encapsulation —

Replace conventional soldering with conductive foil and 2D encapsulation structure

Conventional Cells connected by string ribbons
