45W - 50W Home Use Solar Panels Flexible Solar Cells Cheap Solar Panels

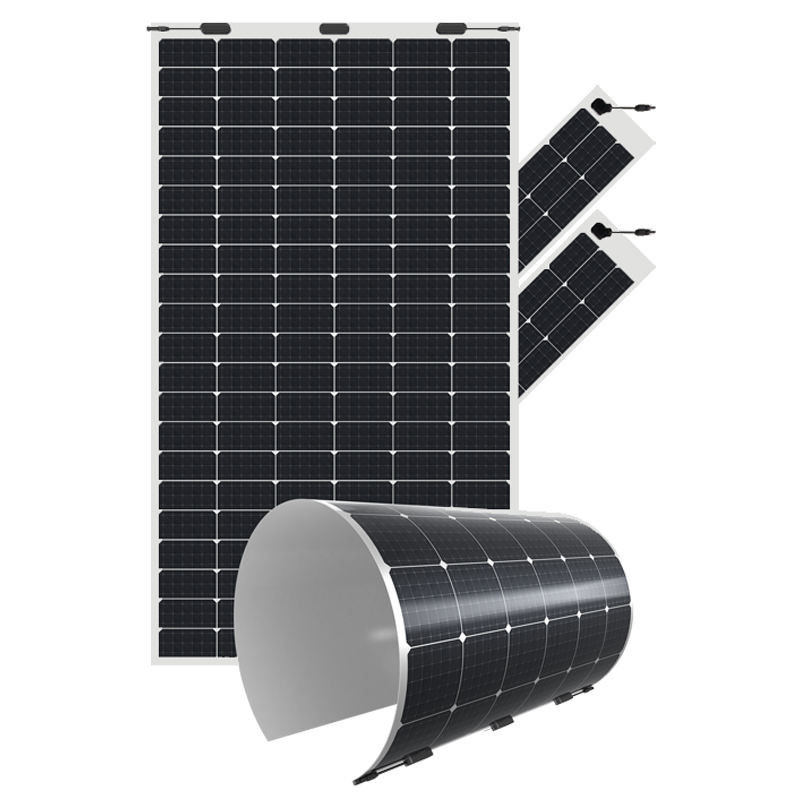

Sunport Power S-FLEX QH1S 80-85W 3x10 30 Solar Cells MWT Mono PERC Flexible Module Customizable Ultra Soft Solar Panel

Monocrystalline solar panels have become a go-to choice for individuals and businesses seeking an efficient and reliable source of renewable energy. These solar panels are manufactured using a single crystal structure, resulting in a higher purity and efficiency than their polycrystalline counterparts. This increased efficiency allows monocrystalline solar panels to generate more power per square foot, making them an excellent choice for those with limited space or who wish to maximize their energy production. The sleek black appearance of these panels is also appealing to many consumers. With a reputation for durability and long-lasting performance, monocrystalline solar panels are a wise investment for those looking to harness the power of the sun.

Spec/Model	Unit	SPP080QH1S	SPP085QH1S
Max-Power(Pm)	W	80	85
Power Tolerance	W	0~+5
Max-Power Voltage(Vm)	V	16.8	17.0
Max-Power Current(Im)	A	4.76	5.01
Open-Circuit Voltage(Voc)	V	20.2	20.4
Short-Circuit Current(Isc)	A	5.09	5.38
Effective Module Efficiency(ηm)	%	16.7	17.7
STC: AM=1.5, Irradiation 1000W/m², Module Temperature 25℃



TECHNOLOGY COMPARISON

Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.



— Structural Feature —

MWT

Positive and negative electrodes are both on the rear side of solar cell

Conventional

Positive and negative electrodes are located on opposite sides of the cell

— Cell Structure —

MWT

Busbar-free design exhibits higher power output by decreasing shading area up to 3 %

Conventional

Conventional design covers more cell surface from the main busbars, therefore the power output is limited

— Module Encapsulation —

Replace conventional soldering with conductive foil and 2D encapsulation structure

Conventional Cells connected by string ribbons
