85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft
  • 85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft
  • 85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft
85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft

85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft

Place of Origin Jiangsu, China
Brand Name AKS
Certification CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Model Number QH1S
Product Details
Product Name:
MWT Flexible Solar Panles
Model Number:
QH1S
Cell Size:
30(3x10)
Panel Efficiency:
17.7%
Installation Module Dimension:
1840mm*295mm*1.7mm
Brand Name:
Sunport
Encapsulant:
POE
High Light:

85W Sunport Solar Panels

,

Sunport Solar Panels Ultra Soft

,

MWT Solar Panel Mono Perc

Payment & Shipping Terms
Minimum Order Quantity
1
Price
To be negotiated
Packaging Details
pallet
Delivery Time
To be negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200000 Watt/Watts per Week
Product Description

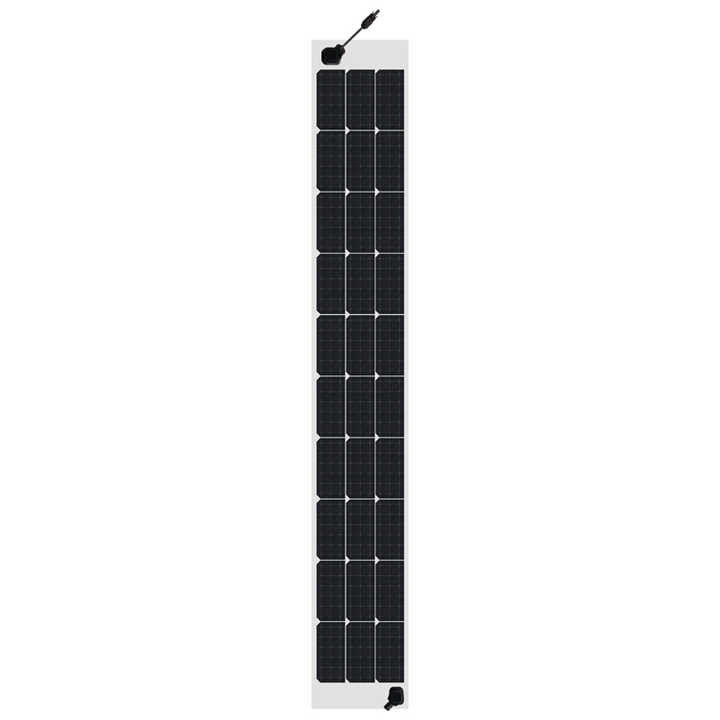

Sunport Power S-FLEX QH1S 80-85W 3x10 30 Solar Cells MWT Mono PERC Flexible Module Customizable Ultra Soft Solar Panel

Monocrystalline solar panels have gained popularity as a top choice for those seeking an efficient and long-lasting renewable energy solution. These solar panels are constructed using a single crystal structure, providing a higher purity and efficiency than alternative solar panel options. The increased efficiency of monocrystalline solar panels allows them to produce more power per square foot, making them ideal for space-conscious individuals or those aiming to maximize energy production. Many people also appreciate the sleek black appearance of these panels. Known for their durability and lengthy lifespan, monocrystalline solar panels are a smart investment for anyone looking to capitalize on solar energy.
Spec/Model
Unit
SPP080QH1S
SPP085QH1S
Max-Power(Pm)
W
80
85
Power Tolerance
W
0~+5
Max-Power Voltage(Vm)
V
16.8
17.0
Max-Power Current(Im)
A
4.76
5.01
Open-Circuit Voltage(Voc)
V
20.2
20.4
Short-Circuit Current(Isc)
A
5.09
5.38
Effective Module Efficiency(ηm)
%
16.7
17.7
STC: AM=1.5, Irradiation 1000W/m², Module Temperature 25℃
85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 085W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 1



TECHNOLOGY COMPARISON
Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.

— Structural Feature —
85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 2
MWT
Positive and negative electrodes are both on the rear side of solar cell
85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 3
Conventional
Positive and negative electrodes are located on opposite sides of the cell
— Cell Structure —
85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 4
MWT
Busbar-free design exhibits higher power output by decreasing shading area up to 3 %
85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 5
Conventional
Conventional design covers more cell surface from the main busbars, therefore the power output is limited
— Module Encapsulation —
85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 6
Replace conventional soldering with conductive foil and 2D encapsulation structure
85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 7
Conventional Cells connected by string ribbons

85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 8

85W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 985W Sunport Solar Panels 80W MWT Solar Panel Mono Perc Ultra Soft 10



FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc


Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
