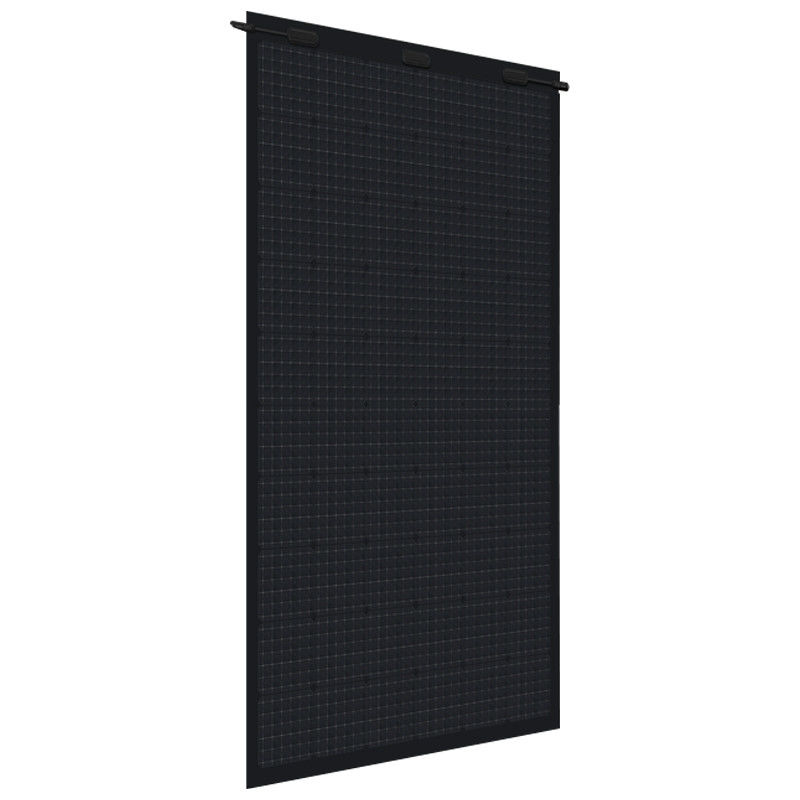

360W 380W Soft Solar Panel MWT Thin Film Flexible Solar Panels Full Black

Sunport Power S-FLEX 6 360-380W MWT Flexible Module Design Full Black Solar Panel Production Line

Full Black

5.7kg weight, 2.5mm thickness, match various requirements for low-load projects

High Efficiency

Busbar-free design increases cell conversion efficiency,  more power output can be achieved at low irradiance conditions

Innovative Layout

Innovative back contact module layout with asymmetric design for higher efficiency power

High Reliability

Conductive back sheet’s 2D encapsulation avoids welding stress and micro crack, resulting lower degradation under multiple harsh testing conditions

High ROI

Single-glass modules with global 30-year performance warranty bring higher return on investment

Lead Free

Eco-friendly PV design achieves lead-free MWT module without soldering materials

Electrical Characteristics at Standard Test Conditions(STC)
Spec/Model	Unit	SPP360QHES	SPP365QHES	SPP370QHES	SPP375QHES	SPP380QHES
Max-Power(Pm)	W	360	365	370	375	380
Power Tolerance	W	0~5%
Max-Power Voltage(Vm)	V	34.7	34.9	35.1	35.3	35.5
Max-Power Current(lm)	A	10.37	10.46	10.54	10.62	10.70
Open-Circuit Voltage(Voc)	V	42.4	42.6	42.8	43.0	43.2
Short-Circuit Current(lsc)	A	10.94	11.02	11.10	11.18	11.26
Module Efficiency(qm)	%	20.4	20.7	21.0	21.2	21.5



TECHNOLOGY COMPARISON

Compared with conventional module, MWT modules reduce 3% shaded area with no busbars. MWT module technology replaces string ribbon by conductive back sheet, abandoning strain, micro-crack and results power degradation, greatly improving stability and reliability.



— Structural Feature —

MWT

Positive and negative electrodes are both on the rear side of solar cell

Conventional

Positive and negative electrodes are located on opposite sides of the cell

— Cell Structure —

MWT

Busbar-free design exhibits higher power output by decreasing shading area up to 3 %

Conventional

Conventional design covers more cell surface from the main busbars, therefore the power output is limited

— Module Encapsulation —

Replace conventional soldering with conductive foil and 2D encapsulation structure

Conventional Cells connected by string ribbons
