| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | TSM-DEG19R |

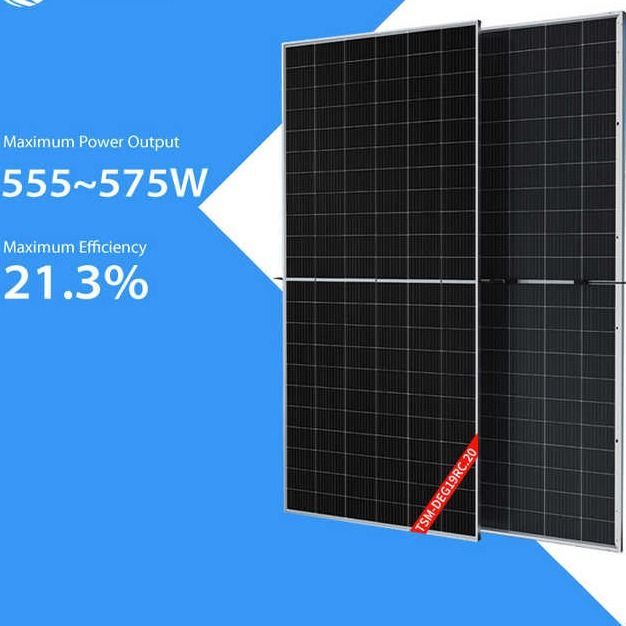

Trina Solar Mono Kit Panel 555W 560W 565W 570W 575W Half Cells
➤ Excellent IAM and low light response performance verified by third parties
➤ Unique layout design provides enhanced resistance to shadow blocking
➤ Lower temperature coefficient (-0.34%) and lower operating temperature for more power generation
➤ Application of dense row technology, module efficiency increased to 21.5%
➤ Multi-Main Barrier (MBB) technology is applied to improve optical utilization, reduce series resistance and enhance current collection
➤ Application of innovative non-destructive cutting technology to reduce the risk of hidden cracks
➤ Improve PID resistance through cell process optimization and material control
➤ Mechanical load performance up to 5400 Pa on the front side and 2400 Pa on the back side
| Electrical Characteristics | |||||
| Maximum Power(Pmax/W) | 560 | 565 | 570 | 575 | 580 |
| Voltage at Maximum Power(Vmp/V) | 38 | 38.3 | 38.5 | 38.8 | 39 |
| Current at Maximum Power(Imp/A) | 14.72 | 14.76 | 14.79 | 14.83 | 14.86 |
| Open Circuit Voltage(Voc/V) | 45.3 | 45.6 | 45.8 | 46.1 | 46.3 |
| Short Circuit Current(lsc/aA) | 15.76 | 15.81 | 15.85 | 15.9 | 15.94 |
| Module Efficiency(%) | 20.7 | 20.9 | 21.1 | 21.3 | 21.5 |
➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting technology
➤Ensured PID resistance through cell process and module material control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load
