Trina Solar Panel
>
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | TSM-DEG20C.20 |

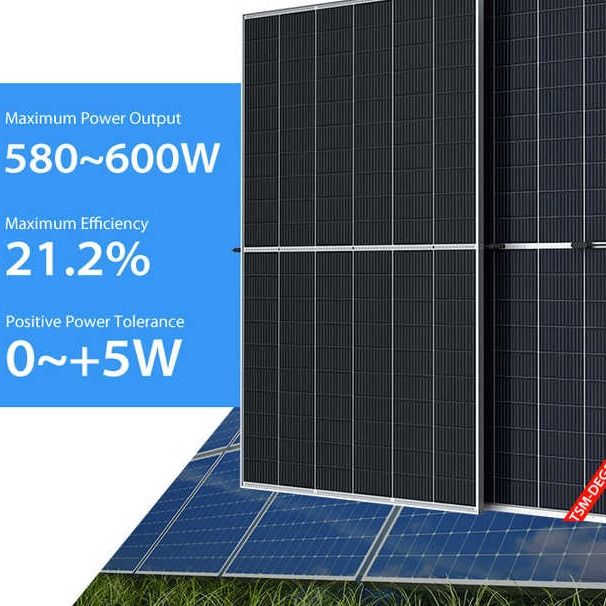

Trina 580W 585W 590W 595W 600W Solar Panels Monocrystalline Solar Pv Panel Efficiency Paneles Solares Fotovoltaicos
Trina Solar offers a range of high-power solar panels, including options with power outputs of 580W, 585W, 590W, 595W, and 600W. These panels are designed to efficiently convert solar energy into electricity, providing a reliable and sustainable power generation solution. Here is a general description of Trina Solar's high-power solar panels:
Power Output: The Trina 580W, 585W, 590W, 595W, and 600W solar panels provide high wattage options for various applications, including residential, commercial, and utility-scale installations. These panels are designed to deliver significant electricity generation capacity, allowing for efficient utilization of available space.
High Efficiency: Trina Solar panels are known for their high conversion efficiency, enabling them to generate more electricity from the available sunlight. These high-power panels incorporate advanced cell technologies, such as PERC (Passivated Emitter Rear Contact) or other innovative designs, to enhance light absorption and electron capture, resulting in improved overall performance.
Durability and Weather Resistance: Trina Solar panels are built to withstand various environmental conditions, ensuring long-term reliability and performance. They are designed to resist factors such as moisture, temperature fluctuations, and potential-induced degradation, ensuring the panels can withstand the elements and maintain their efficiency over time.
| Model No. | 580 | 585 | 590 | 595 | 600 | 605 |
| Warranty | ||||||
| Product Warranty | 12 Years | |||||
| Power Warranty | 30 Years of 85% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 580 Wp | 585 Wp | 590 Wp | 595 Wp | 600 Wp | 605 Wp |
| Voltage at Maximum Power (Vmpp) | 33.8 V | 34 V | 34.2 V | 34.4 V | 34.6 V | 34.8 V |
| Current at Maximum Power (Impp) | 17.16 A | 17.21 A | 17.25 A | 17.3 A | 17.34 A | 17.39 A |
| Open Circuit Voltage (Voc) | 40.9 V | 41.1 V | 41.3 V | 41.5 V | 41.7 V | 41.9 V |
| Short Circuit Current (Isc) | 18.21 A | 18.26 A | 18.31 A | 18.36 A | 18.42 A | 18.48 A |
| Panel Efficiency | 20.50% | 20.70% | 20.80% | 21% | 21.20% | 21.40% |
| Power Tolerance (Positive) | 1% | 1% | 1% | 1% | 1% | 1% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Electrical Data at NOCT | ||||||
| Maximum Power (Pmax) | 439 Wp | 443 Wp | 447 Wp | 451 Wp | 454 Wp | 458 Wp |
| Voltage at Maximum Power (Vmpp) | 31.5 V | 31.7 V | 31.9 V | 32 V | 32.2 V | 32.4 V |
| Current at Maximum Power (Impp) | 13.93 A | 13.97 A | 14.01 A | 14.06 A | 14.1 A | 14.14 A |
| Open Circuit Voltage (Voc) | 38.5 V | 38.7 V | 38.9 V | 39.1 V | 39.3 V | 39.5 V |
| Short Circuit Current (Isc) | 14.68 A | 14.72 A | 14.76 A | 14.8 A | 14.84 A | 14.89 A |
| Temperature | 43±2 °C | |||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | 40~85 °C | |||||
| Temperature Coefficient of Pmax | 0.34 %/°C | |||||
| Temperature Coefficient of Voc | 0.25 %/°C | |||||
| Temperature Coefficient of Isc | 0.04 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 35 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 2172x1303x35 mm | |||||
| Weight | 34.9 kg | |||||
| Cell Type | Bifacial | |||||
| Cell Number | 120 | |||||
| Glass Type | Anti-reflection Coating, Tempered | |||||
| Glass Thickness | 2 mm | |||||
| Encapsulant Type | EVA | |||||
| Frame Type | Anodized Aluminium Alloy | |||||
| Junction Box Protection Class | IP 68 | |||||
| Connector Type | MC4 | |||||
| Cable Crossection | 4 mm2 | |||||
➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting technology
➤Ensured PID resistance through cell process and module material control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load
