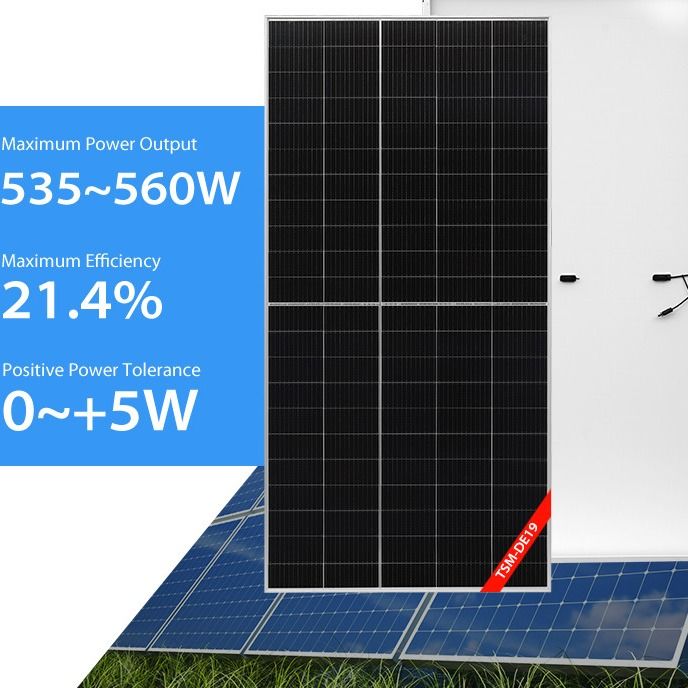

535W 540W Vertex Solar Panels Mono Facial Solar Panel 545W 550W 555W 560w



On the base of its superior multi-busbar technology, Trina Solar's research and development team has introduced an innovative design that integrates non-destructive cutting and high-density encapsulation technologies. The multi-busbar technology, with the capability to increase the light absorption, is a perfect match with the large-area cell. Technology integrations enable the Vertex to achieve higher power and power generation capacity per watt.





With stronger resistance against hotspots and excessive temperature, Vertex modules maintain high reliability. The application of multi-busbar cells results in more uniform loads to prevent stress, resulting in better performance even in case of slight cracking. Nowadays the market share of PV modules featuring MBB technology is dominant in the global solar in



Model No.	530	535	540	545	550	555	560
Warranty
Product Warranty	12 Years
Power Warranty	25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax)	530 Wp	535 Wp	540 Wp	545 Wp	550 Wp	555 Wp	560 Wp
Voltage at Maximum Power (Vmpp)	30.8 V	31 V	31.2 V	31.4 V	31.6 V	31.8 V	32 V
Current at Maximum Power (Impp)	17.21 A	17.28 A	17.33 A	17.37 A	17.4 A	17.45 A	17.49 A
Open Circuit Voltage (Voc)	37.1 V	37.3 V	37.5 V	37.7 V	37.9 V	38.1 V	38.3 V
Short Circuit Current (Isc)	18.31 A	18.36 A	18.41 A	18.47 A	18.52 A	18.56 A	18.6 A
Panel Efficiency	20.30%	20.50%	20.70%	20.90%	21%	21.20%	21.40%
Power Tolerance (Positive)	1%	1%	1%	1%	1%	1%	1%
	Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)	401 Wp	405 Wp	409 Wp	413 Wp	417 Wp	420 Wp	424 Wp
Voltage at Maximum Power (Vmpp)	28.6 V	28.8 V	29 V	29.2 V	29.3 V	29.5 V	29.7 V
Current at Maximum Power (Impp)	14.01 A	14.06 A	14.1 A	14.15 A	14.19 A	14.23 A	14.26 A
Open Circuit Voltage (Voc)	35 V	35.1 V	35.3 V	35.5 V	35.7 V	35.9 V	36.1 V
Short Circuit Current (Isc)	14.76 A	14.8 A	14.84 A	14.88 A	14.92 A	14.96 A	14.99 A
Temperature	43±2 °C
	Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range	40~85 °C
Temperature Coefficient of Pmax	0.34 %/°C
Temperature Coefficient of Voc	0.25 %/°C
Temperature Coefficient of Isc	0.04 %/°C
Maximum Ratings
Maximum System Voltage	1500 V
Series Fuse Rating	30 A
Material Data
Panel Dimension (H/W/D)	2384x1096x35 mm
Weight	28.6 kg
Cell Type	Monocrystalline
Cell Number	110
Glass Type	Anti-reflection Coating, Tempered
Glass Thickness	3.2 mm
Encapsulant Type	EVA
Frame Type	Anodized Aluminium Alloy
Junction Box Protection Class	IP 68
Connector Type	MC4
Cable Crossection	4 mm2
