Trina Solar Panel
>
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | TSM-DE21 |

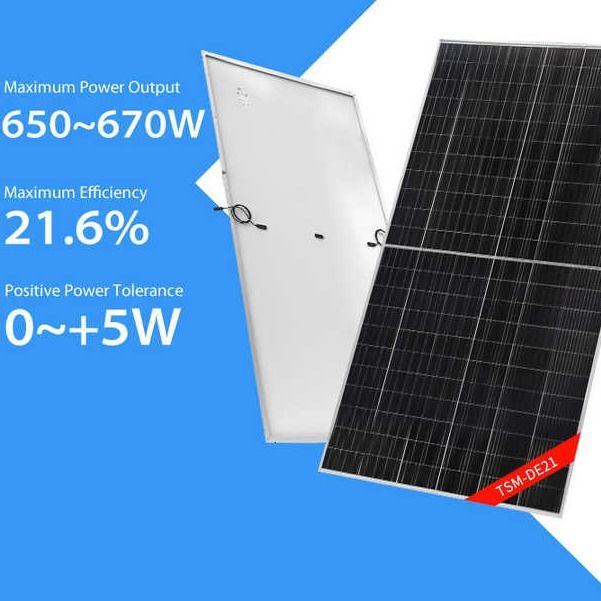

Trinasolar 210mm Solar Cell Mono Facial Half Cell Solar Panels 650W-670W Solar Pv Power
Trina Solar offers a range of high-power solar panels featuring 210mm solar cells, mono facial half-cell design, and power outputs ranging from 650W to 670W. These panels are designed to deliver exceptional performance, efficiency, and power generation capacity. Here is a product description for Trina Solar's 210mm mono facial half-cell solar panels with power outputs of 650W-670W:
Power Output: The Trina Solar 210mm solar panels with power outputs ranging from 650W to 670W provide industry-leading wattage for residential, commercial, and utility-scale applications. These high-wattage panels offer significant electricity generation capacity, allowing for efficient utilization of available roof or ground space.
Mono Facial Half-Cell Design: These solar panels feature a mono facial half-cell design, which means that the cells are divided into two halves with separate current paths. This design reduces resistive losses and improves energy yield by mitigating the effects of shading, soiling, and other factors that can impact overall system performance.
| Model No. | 650 | 655 | 660 | 665 | 670 |
| Warranty | |||||
| Product Warranty | 12 Years | ||||
| Power Warranty | 25 Years of 84.8% Output Power | ||||
| Electrical Data at STC | |||||
| Maximum Power (Pmax) | 650 Wp | 655 Wp | 660 Wp | 665 Wp | 670 Wp |
| Voltage at Maximum Power (Vmpp) | 37.4 V | 37.6 V | 37.8 V | 38 V | 38.2 V |
| Current at Maximum Power (Impp) | 17.39 A | 17.43 A | 17.47 A | 17.51 A | 17.55 A |
| Open Circuit Voltage (Voc) | 45.3 V | 45.5 V | 45.7 V | 45.9 V | 46.1 V |
| Short Circuit Current (Isc) | 18.44 A | 18.48 A | 18.53 A | 18.57 A | 18.62 A |
| Panel Efficiency | 20.90% | 21.10% | 21.20% | 21.40% | 21.60% |
| Power Tolerance (Positive) | 1% | 1% | 1% | 1% | 1% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||
| Electrical Data at NOCT | |||||
| Maximum Power (Pmax) | 492 Wp | 496 Wp | 500 Wp | 504 Wp | 508 Wp |
| Voltage at Maximum Power (Vmpp) | 34.9 V | 35.1 V | 35.3 V | 35.4 V | 35.6 V |
| Current at Maximum Power (Impp) | 14.09 A | 14.13 A | 14.17 A | 14.22 A | 14.26 A |
| Open Circuit Voltage (Voc) | 42.7 V | 42.9 V | 43 V | 43.2 V | 43.4 V |
| Short Circuit Current (Isc) | 14.86 A | 14.89 A | 14.93 A | 14.96 A | 15.01 A |
| Temperature | 43±2 °C | ||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||
| Thermal Ratings | |||||
| Operating Temperature Range | 40~85 °C | ||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||
| Temperature Coefficient of Voc | 0.25 %/°C | ||||
| Temperature Coefficient of Isc | 0.04 %/°C | ||||
| Maximum Ratings | |||||
| Maximum System Voltage | 1500 V | ||||
| Series Fuse Rating | 30 A | ||||
| Material Data | |||||
| Panel Dimension (H/W/D) | 2384x1303x35 mm | ||||
| Weight | 33.9 kg | ||||
| Cell Type | Monocrystalline | ||||
| Cell Number | 132 | ||||
| Glass Type | Anti-reflection Coating, Tempered | ||||
| Glass Thickness | 3.2 mm | ||||
| Encapsulant Type | EVA | ||||
| Frame Type | Anodized Aluminium Alloy | ||||
| Junction Box Protection Class | IP 68 | ||||
| Connector Type | MC4 | ||||
| Cable Crossection | 4 mm2 | ||||
➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting technology
➤Ensured PID resistance through cell process and module material control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load
