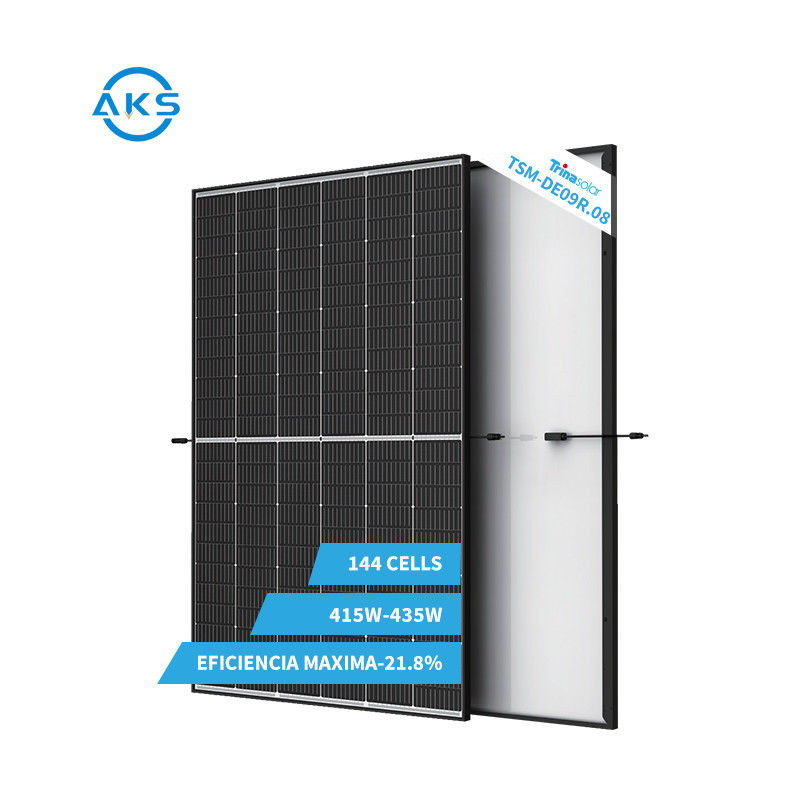

Monocrystalline Solar Panel
>
|
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | TSM-DE09R.08 |
| Model No. | 415 | 420 | 425 | 430 | 435 |
| Warranty | |||||
| Product Warranty | 15 Years | ||||
| Power Warranty | 25 Years of 84.8% Output Power | ||||
| Electrical Data at STC | |||||
| Maximum Power (Pmax) | 415 Wp | 420 Wp | 425 Wp | 430 Wp | 435 Wp |
| Voltage at Maximum Power (Vmpp) | 41.7 V | 42 V | 42.2 V | 42.3 V | 42.5 V |
| Current at Maximum Power (Impp) | 9.94 A | 10.01 A | 10.08 A | 10.17 A | 10.24 A |
| Open Circuit Voltage (Voc) | 50 V | 50.1 V | 50.2 V | 50.3 V | 50.4 V |
| Short Circuit Current (Isc) | 10.55 A | 10.58 A | 10.61 A | 10.64 A | 10.67 A |
| Panel Efficiency | 20.80% | 21% | 21.30% | 21.50% | 21.80% |
| Power Tolerance (Positive) | 1% | 1% | 1% | 1% | 1% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||
| Electrical Data at NOCT | |||||
| Maximum Power (Pmax) | 312 Wp | 317 Wp | 321 Wp | 325 Wp | 329 Wp |
| Voltage at Maximum Power (Vmpp) | 38.7 V | 39.2 V | 39.5 V | 39.7 V | 40 V |
| Current at Maximum Power (Impp) | 8.07 A | 8.1 A | 8.13 A | 8.17 A | 8.23 A |
| Open Circuit Voltage (Voc) | 47.1 V | 47.1 V | 47.2 V | 47.4 V | 47.5 V |
| Short Circuit Current (Isc) | 8.5 A | 8.53 A | 8.55 A | 8.6 A | 8.65 A |
| Temperature | 43±2 °C | ||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||
| Thermal Ratings | |||||
| Operating Temperature Range | 40~85 °C | ||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||
| Temperature Coefficient of Voc | 0.25 %/°C | ||||
| Temperature Coefficient of Isc | 0.04 %/°C | ||||
| Maximum Ratings | |||||
| Maximum System Voltage | 1500 V | ||||
| Series Fuse Rating | 20 A | ||||
| Material Data | |||||
| Panel Dimension (H/W/D) | 1762x1134x30 mm | ||||
| Weight | 21.8 kg | ||||
| Cell Type | Monocrystalline | ||||
| Cell Number | 144 | ||||
| Glass Type | Anti-reflection Coating | ||||
| Glass Thickness | 3.2 mm | ||||
| Encapsulant Type | EVA | ||||
| Frame Type | Anodized Aluminium Alloy | ||||
| Junction Box Protection Class | IP 68 | ||||
| Connector Type | MC4 | ||||
| Cable Crossection | 4 mm2 | ||||
➤ Designed for compatibility with existing mainstream optimizers, inverters and mounting systems
➤ Perfect size and low weight. Easy for handling. Economy for transporting
➤ Diverse installation solutions. Flexible for system deployment
Universal solution for residential and C&I rooftops
• Designed for compatibility with existing mainstream optimizers, inverters
and mounting systems
• Perfect size and low weight. Easy for handling. Economy for transporting
• Diverse installation solutions. Flexible for system deployment
➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting technology
➤Ensured PID resistance through cell process and module material control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load
