Monocrystalline Solar Panel
>
|
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | HiKu6-CS6W-MS |

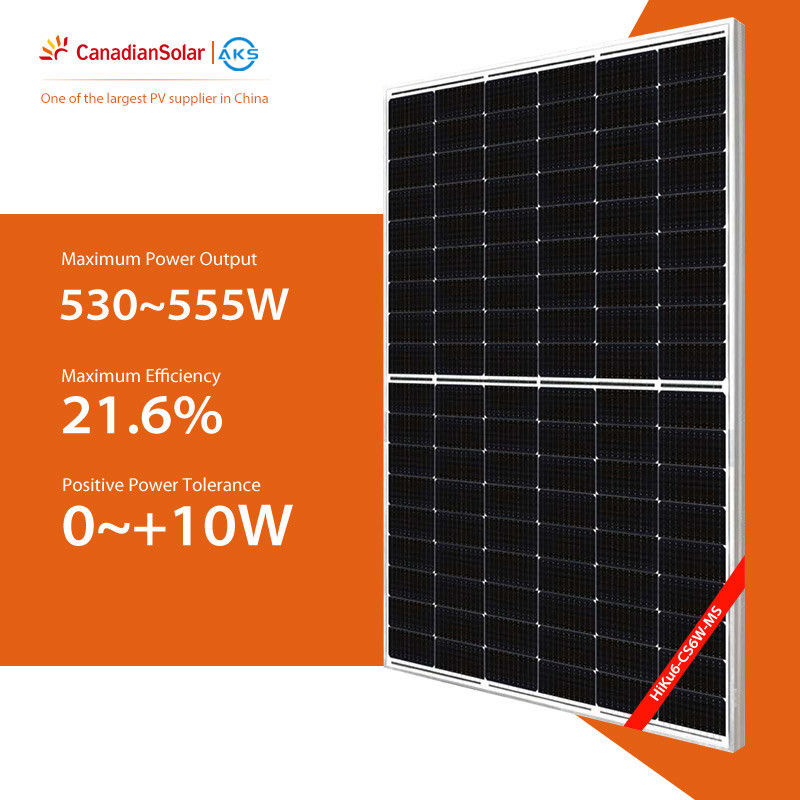

Canadian Solar offers a range of high-quality solar panels with power outputs ranging from 530W to 555W. These solar panels are designed to efficiently convert solar energy into electricity, providing reliable and sustainable power generation for various applications.
Power Output: The Canadian Solar panels in this range offer a wide power output range, allowing for significant electricity generation capacity. With power outputs ranging from 530W to 555W, these panels are suitable for residential, commercial, and utility-scale installations.
High Efficiency: The panels are built with advanced solar cell technology to maximize energy conversion efficiency. By capturing and converting more sunlight into electricity, these panels can generate higher power outputs, resulting in increased energy production and improved overall system performance.
Reliable Performance: Canadian Solar is known for producing high-quality and reliable solar panels. These panels undergo rigorous quality control processes and are built to withstand various environmental conditions. They are designed to deliver consistent performance over their lifespan, ensuring reliable power generation for years to come.
| Model No. | CS6W-530MS | CS6W-535MS | CS6W-540MS | CS6W-545MS | CS6W-550MS | CS6W-555MS |
| Warranty | ||||||
| Product Warranty | 12 Years | |||||
| Power Warranty | 25 Years of 84.8% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 530 Wp | 535 Wp | 540 Wp | 545 Wp | 550 Wp | 555 Wp |
| Voltage at Maximum Power (Vmpp) | 40.9 V | 41.1 V | 41.3 V | 41.5 V | 41.7 V | 41.9 V |
| Current at Maximum Power (Impp) | 12.96 A | 13.02 A | 13.08 A | 13.14 A | 13.2 A | 13.25 A |
| Open Circuit Voltage (Voc) | 48.8 V | 49 V | 49.2 V | 49.4 V | 49.6 V | 49.8 V |
| Short Circuit Current (Isc) | 13.8 A | 13.85 A | 13.9 A | 13.95 A | 14 A | 14.05 A |
| Panel Efficiency | 20.70% | 20.90% | 21.10% | 21.30% | 21.50% | 21.60% |
| Power Tolerance (Positive) | 2% | 2% | 2% | 2% | 2% | 2% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Electrical Data at NOCT | ||||||
| Maximum Power (Pmax) | 397 Wp | 401 Wp | 405 Wp | 409 Wp | 412 Wp | 416 Wp |
| Voltage at Maximum Power (Vmpp) | 38.3 V | 38.5 V | 38.7 V | 38.9 V | 39.1 V | 39.3 V |
| Current at Maximum Power (Impp) | 10.38 A | 10.42 A | 10.47 A | 10.52 A | 10.55 A | 10.59 A |
| Open Circuit Voltage (Voc) | 46.1 V | 46.3 V | 46.5 V | 46.7 V | 46.9 V | 47.1 V |
| Short Circuit Current (Isc) | 11.13 A | 11.17 A | 11.21 A | 11.25 A | 11.29 A | 11.33 A |
| Temperature | 41±3 °C | |||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | 40~85 °C | |||||
| Temperature Coefficient of Pmax | 0.34 %/°C | |||||
| Temperature Coefficient of Voc | 0.26 %/°C | |||||
| Temperature Coefficient of Isc | 0.05 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 25 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 2261x1134x30 mm | |||||
| Weight | 27.6 kg | |||||
| Cell Type | PERC | |||||
| Cell Number | 144 | |||||
| Glass Type | Anti-reflection Coating, Tempered | |||||
| Glass Thickness | 3.2 mm | |||||
| Frame Type | Anodized Aluminium Alloy | |||||
| Junction Box Diodes | 3 | |||||
| Junction Box Protection Class | IP 68 | |||||
| Connector Type | MC4 | |||||
| Cable Crossection | 4 mm2 | |||||
| Cable Length | 410 mm | |||||
