| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |

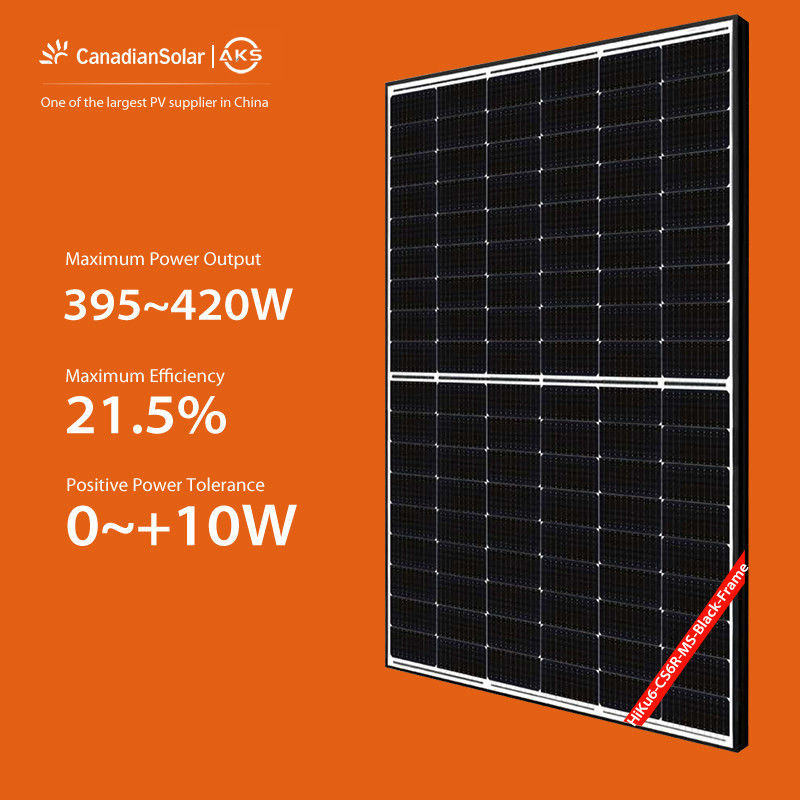

| Model Number | HiKu6 (All-Black)-CS6R-MS |
Monocrystalline solar panels are composed of single-crystal silicon cells, which give them their characteristic high efficiency and uniform appearance. This higher efficiency means that monocrystalline solar panels can produce more electricity per square foot than other types of solar panels, making them an ideal choice for installations with limited space or where maximum energy production is desired. Explore our diverse range of monocrystalline solar panels and find the perfect solution to meet your specific needs, budget, and sustainability goals.
Lower BOS cost & LCOE cost
· Reduce 5.7% BOS cost
· 3.5% lower LCOE
· Compatible with mainstream inverters
Enhanced reliability
· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
· Excellent hot spot performance
· Better shading tolerance
| Model No. | CS6R-395MS | CS6R-400MS | CS6R-405MS | CS6R-410MS | CS6R-415MS | CS6R-420MS |
| Warranty | ||||||
| Product Warranty | 25 Years | |||||
| Power Warranty | 25 Years of 84.8% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 395 Wp | 400 Wp | 405 Wp | 410 Wp | 415 Wp | 420 Wp |
| Voltage at Maximum Power (Vmpp) | 30.6 V | 30.8 V | 31 V | 31.2 V | 31.4 V | 31.6 V |
| Current at Maximum Power (Impp) | 12.91 A | 12.99 A | 13.07 A | 13.15 A | 13.23 A | 13.31 A |
| Open Circuit Voltage (Voc) | 36.6 V | 36.8 V | 37 V | 37.02 V | 37.4 V | 37.6 V |
| Short Circuit Current (Isc) | 13.77 A | 13.85 A | 13.93 A | 14.01 A | 14.09 A | 14.17 A |
| Panel Efficiency | 20.20% | 20.50% | 20.70% | 21% | 21.30% | 21.50% |
| Power Tolerance (Positive) | 2.50% | 2.50% | 2.50% | 2.50% | 2.50% | 2.50% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Electrical Data at NOCT | ||||||
| Maximum Power (Pmax) | 296 Wp | 300 Wp | 304 Wp | 307 Wp | 311 Wp | 315 Wp |
| Voltage at Maximum Power (Vmpp) | 28.7 V | 28.9 V | 29.1 V | 29.2 V | 29.4 V | 29.6 V |
| Current at Maximum Power (Impp) | 10.33 A | 10.39 A | 10.45 A | 10.52 A | 10.58 A | 10.65 A |
| Open Circuit Voltage (Voc) | 34.6 V | 34.8 V | 35 V | 35.1 V | 35.3 V | 35.5 V |
| Short Circuit Current (Isc) | 11.09 A | 11.15 A | 11.21 A | 11.28 A | 11.34 A | 11.41 A |
| Temperature | 41±3 °C | |||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | 40~85 °C | |||||
| Temperature Coefficient of Pmax | 0.34 %/°C | |||||
| Temperature Coefficient of Voc | 0.26 %/°C | |||||
| Temperature Coefficient of Isc | 0.05 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 25 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 1722x1134x30 mm | |||||
| Weight | 21.3 kg | |||||
| Cell Type | PERC | |||||
| Cell Number | 108 | |||||
| Glass Type | Anti-reflection Coating, Tempered | |||||
| Glass Thickness | 3.2 mm | |||||
| Frame Type | Anodized Aluminium Alloy | |||||
| Junction Box Diodes | 3 | |||||
| Junction Box Protection Class | IP 68 | |||||
| Connector Type | MC4 | |||||
| Cable Crossection | 4 mm2 | |||||
| Cable Length | 410 mm | |||||
