| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | M10-144-D |

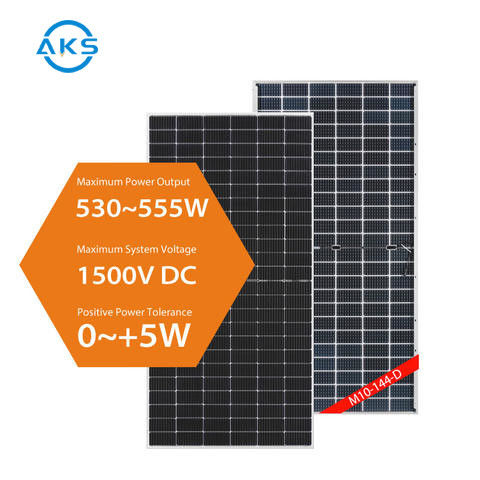

TW Solar 530W 535W 540W 545W 550W 555W Baterias Para Paneles Solares Best Home Use Solar Panels
Monocrystalline solar panels have excellent performance in low light conditions, making them a great choice for regions with less sunlight or cloudy weather. The high efficiency of these panels allows them to generate power even when sunlight is not at its peak, ensuring consistent energy production throughout the day. This advantage makes monocrystalline solar panels a reliable energy source for those who live in areas with variable weather conditions or limited sunlight hours.
| Electrical Characteristics (STC) | ||||||
| Module type: TW***MBAP-144-D | ||||||
| Maximum power: Pm (W) | 535 | 540 | 545 | 550 | 555 | 560 |
| Open clrcu ft voltage: Voc (V) | 49.5 | 49.7 | 49.90 | 50.10 | 50.30 | 50.50 |
| Short circuit current Isc (A) | 13.73 | 13.78 | 13.83 | 13.88 | 13.93 | 13.98 |
| Voltage at maximum power point: Vm (V) | 41.36 | 41.56 | 41.76 | 41.96 | 42.16 | 42.36 |
| Current at maximum power point Im (A) | 12.94 | 13 | 13.05 | 13.11 | 13.16 | 13.23 |
| Module efficiency T] (%) | 207 | 20.9 | 21.1 | 21.1 | 21.5 | 21.7 |
| STC: Irradiance lOODW/nf, Cell Temperature 25t, Air Massl .5, Measuring tolerance: ±3% | ||||||
| Electrical Characteristics (NMO10 | ||||||
| Maximum power: Pm (W) | 404.8 | 408.6 | 412.4 | 4162 | 420.0 | 423.1 |
| Open circuit voltage: Voc (V) | 46.21 | 46.48 | 46.74 | 47.01 | 47.28 | 47.34 |
| Short circuit current Isc (A) | 11 | 11.04 | 11.08 | 11.12 | 11.16 | 11.20 |
| Voltage at maximum power point: Vm (V) | 38.23 | 38,45 | 38.67 | 38.90 | 39,12 | 39,25 |
| Current at maximum power point Im (A) | 10.58 | 10.62 | 10.66 | 10.70 | 10.74 | 10.78 |
| NMOT: Irradiance 800W/m2, Ambient Temperature 20 aC, AM=1.5, Wind Speed 1m/s | ||||||
| Electrical characteristics with different power bin(refer»nce to different Irradianm ratio) | ||||||
| s. Maximum power Pm (W) 5% | 561.8 | 567 | 572.3 | 577.5 | 582.8 | 588.0 |
| Module efficiency: v (%) | 21.7 | 21.9 | 222 | 22.4 | 22.6 | 22.8 |
| [5% Maximum power Pm (W) | 615.3 | 621 | 626.8 | 6325 | 638.3 | 644.0 |
| Module efficiency v (%) | 23.8 | 240 | 243 | 24,5 | 247 | 249 |
| Maximum power Pm (W) | 668.8 | 675 | 681.3 | 687.5 | 693.8 | 700.0 |
| Module efficiency: T] (%) | 25.9 | 26.1 | 26.4 | 26.6 | 26.9 | 27.1 |
| Mechanical Parameter | |
| Cells | P4PC |
| Orientation | 144(6x24) |
| Size | 2278±2xll34±2x30mm |
| Weight | 32.7kg |
| Front Glass | 2.0mm AR coated heat strengthened glass |
| Rear Glass | 2.0mm heat strengthened glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68r 3 diodes |
| Cable 4.0mm2, Positive; 280mm, Negrth/e: 280mm, length can be customized | |
| Connector | MC4 Compatible or MC4 original |
| Wind/Snow Load | 2400Pa/5^00Pa |
| Packaging | 36pcs per pallet, 720pcs per 40'HC |
| Operating Parameters | |||
| Operational Temperature | -40.+85℃ | ||
| Maximum System Voltage | 1500V DC | ||
| Maximum Series Fuse Rating | 30A | ||
| Power Output Tolerance | c-+5W | ||
| Bifeciality | 70±5% | ||
| Temperature Ratings | |||
| Temperature Coefficient (Pmax) | 0.35%TC | ||
| Temperature Coefficient (Voc) | -028VC | ||
| Temperature Coefficient (Isc) | ±0.05%/°C | ||
| NMOT | 45±2°C | ||
