| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | TWMPF-60HS |

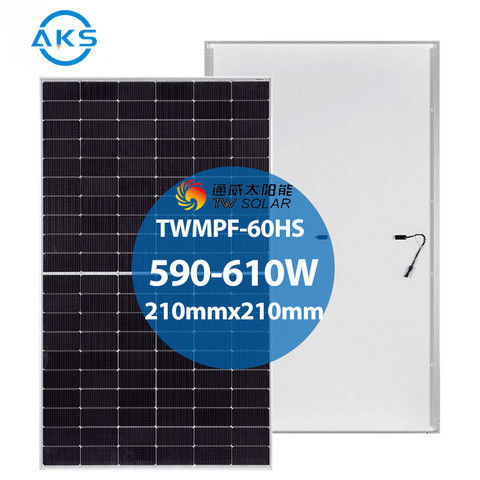

TW SOLAR 590 Watts Monofacial Module 595W High Power China Half Cell Solar Panel Wholesale 605W 610W 600W
The temperature coefficient is an important factor to consider when choosing solar panels, as it measures how much a panel's efficiency decreases as the temperature increases. Monocrystalline solar panels generally have a lower temperature coefficient than other types of solar panels, meaning that they maintain their efficiency better in hot conditions. This makes them an ideal choice for those living in hot climates or areas with high levels of solar radiation, as they can continue to produce power efficiently even during high-temperature periods.
| Model No. | TWMPF-60HS590 | TWMPF-60HS595 | TWMPF-60HS600 | TWMPF-60HS605 | TWMPF-60HS610 |
| Warranty | |||||
| Product Warranty | 12 Years | ||||
| Power Warranty | 25 Years of 84.8% Output Power | ||||
| Electrical Data at STC | |||||
| Maximum Power (Pmax) | 590 Wp | 595 Wp | 600 Wp | 605 Wp | 610 Wp |
| Voltage at Maximum Power (Vmpp) | 33.96 V | 34.16 V | 34.36 V | 34.56 V | 34.76 V |
| Current at Maximum Power (Impp) | 17.37 A | 17.41 A | 17.46 A | 17.5 A | 17.55 A |
| Open Circuit Voltage (Voc) | 41.05 V | 41.25 V | 41.45 V | 41.65 V | 41.85 V |
| Short Circuit Current (Isc) | 18.45 A | 18.5 A | 18.55 A | 18.61 A | 18.66 A |
| Panel Efficiency | 20.80% | 21% | 21.20% | 21.40% | 21.60% |
| Power Tolerance (Positive) | 1% | 1% | 11% | 1% | 1% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||
| Electrical Data at NOCT | |||||
| Maximum Power (Pmax) | 446.4 Wp | 450.2 Wp | 454 Wp | 457.7 Wp | 461.5 Wp |
| Voltage at Maximum Power (Vmpp) | 31.69 V | 31.88 V | 32.06 V | 32.25 V | 32.43 V |
| Current at Maximum Power (Impp) | 14.09 A | 14.12 A | 14.16 A | 14.19 A | 14.23 A |
| Open Circuit Voltage (Voc) | 38.67 V | 38.86 V | 39.05 V | 39.24 V | 39.43 V |
| Short Circuit Current (Isc) | 14.87 A | 14.92 A | 14.96 A | 15 A | 15.04 A |
| Temperature | 45±2 °C | ||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||
| Thermal Ratings | |||||
| Operating Temperature Range | 40~85 °C | ||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||
| Temperature Coefficient of Voc | 0.27 %/°C | ||||
| Temperature Coefficient of Isc | 0.045 %/°C | ||||
| Maximum Ratings | |||||
| Maximum System Voltage | 1500 V | ||||
| Series Fuse Rating | 30 A | ||||
| Material Data | |||||
| Panel Dimension (H/W/D) | 2172x1303x35 mm | ||||
| Weight | 31 kg | ||||
| Cell Type | Monocrystalline | ||||
| Cell Number | 120 | ||||
| Glass Type | Anti-reflection Coating, Tempered | ||||
| Glass Thickness | 3.2 mm | ||||
| Frame Type | Anodized Aluminium Alloy | ||||
| Junction Box Diodes | 3 | ||||
| Junction Box Protection Class | IP 68 | ||||
| Cable Crossection | 4 mm2 | ||||
