| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | M10-144-D |

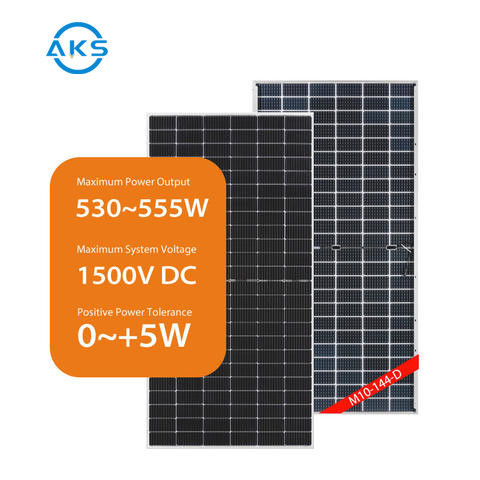

TW Solar 530W 535W 540W 545W 550W 555W Baterias Para Paneles Solares Best Home Use Solar Panels
Monocrystalline Technology: TongWei's monocrystalline PV panels are made using high-quality monocrystalline silicon cells. Monocrystalline technology enables efficient conversion of sunlight into electricity, maximizing the panel's overall performance.
High Efficiency: TongWei's monocrystalline PV panels are designed to achieve high conversion efficiencies. The precise manufacturing processes and advanced cell technologies employed by TongWei contribute to improved light absorption and electron capture, resulting in higher overall efficiency.
Durability and Weather Resistance: TongWei's panels are built to withstand various environmental conditions, ensuring long-term durability and performance. They undergo rigorous testing for factors such as moisture resistance, temperature fluctuations, and potential-induced degradation to ensure reliable operation over the panel's lifespan.
Certifications and Standards: TongWei's monocrystalline PV panels typically adhere to international standards and certifications such as IEC, TUV, UL, and others, ensuring compliance with safety and performance regulations.
| Electrical Characteristics (STC) | ||||||
| Module type: TW***MBAP-144-D | ||||||
| Maximum power: Pm (W) | 535 | 540 | 545 | 550 | 555 | 560 |
| Open clrcu ft voltage: Voc (V) | 49.5 | 49.7 | 49.90 | 50.10 | 50.30 | 50.50 |
| Short circuit current Isc (A) | 13.73 | 13.78 | 13.83 | 13.88 | 13.93 | 13.98 |
| Voltage at maximum power point: Vm (V) | 41.36 | 41.56 | 41.76 | 41.96 | 42.16 | 42.36 |
| Current at maximum power point Im (A) | 12.94 | 13 | 13.05 | 13.11 | 13.16 | 13.23 |
| Module efficiency T] (%) | 207 | 20.9 | 21.1 | 21.1 | 21.5 | 21.7 |
| STC: Irradiance lOODW/nf, Cell Temperature 25t, Air Massl .5, Measuring tolerance: ±3% | ||||||
| Electrical Characteristics (NMO10 | ||||||
| Maximum power: Pm (W) | 404.8 | 408.6 | 412.4 | 4162 | 420.0 | 423.1 |
| Open circuit voltage: Voc (V) | 46.21 | 46.48 | 46.74 | 47.01 | 47.28 | 47.34 |
| Short circuit current Isc (A) | 11 | 11.04 | 11.08 | 11.12 | 11.16 | 11.20 |
| Voltage at maximum power point: Vm (V) | 38.23 | 38,45 | 38.67 | 38.90 | 39,12 | 39,25 |
| Current at maximum power point Im (A) | 10.58 | 10.62 | 10.66 | 10.70 | 10.74 | 10.78 |
| NMOT: Irradiance 800W/m2, Ambient Temperature 20 aC, AM=1.5, Wind Speed 1m/s | ||||||
| Electrical characteristics with different power bin(refer»nce to different Irradianm ratio) | ||||||
| s. Maximum power Pm (W) 5% | 561.8 | 567 | 572.3 | 577.5 | 582.8 | 588.0 |
| Module efficiency: v (%) | 21.7 | 21.9 | 222 | 22.4 | 22.6 | 22.8 |
| [5% Maximum power Pm (W) | 615.3 | 621 | 626.8 | 6325 | 638.3 | 644.0 |
| Module efficiency v (%) | 23.8 | 240 | 243 | 24,5 | 247 | 249 |
| Maximum power Pm (W) | 668.8 | 675 | 681.3 | 687.5 | 693.8 | 700.0 |
| Module efficiency: T] (%) | 25.9 | 26.1 | 26.4 | 26.6 | 26.9 | 27.1 |
| Mechanical Parameter | |
| Cells | P4PC |
| Orientation | 144(6x24) |
| Size | 2278±2xll34±2x30mm |
| Weight | 32.7kg |
| Front Glass | 2.0mm AR coated heat strengthened glass |
| Rear Glass | 2.0mm heat strengthened glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68r 3 diodes |
| Cable 4.0mm2, Positive; 280mm, Negrth/e: 280mm, length can be customized | |
| Connector | MC4 Compatible or MC4 original |
| Wind/Snow Load | 2400Pa/5^00Pa |
| Packaging | 36pcs per pallet, 720pcs per 40'HC |
| Operating Parameters | |||
| Operational Temperature | -40.+85℃ | ||
| Maximum System Voltage | 1500V DC | ||
| Maximum Series Fuse Rating | 30A | ||
| Power Output Tolerance | c-+5W | ||
| Bifeciality | 70±5% | ||
| Temperature Ratings | |||
| Temperature Coefficient (Pmax) | 0.35%TC | ||
| Temperature Coefficient (Voc) | -028VC | ||
| Temperature Coefficient (Isc) | ±0.05%/°C | ||
| NMOT | 45±2°C | ||
