Place of Origin	Jiangsu, China
Brand Name	AKS
Certification	CGC，ISO9001:2015，TUV SUD，PV，CNAS，

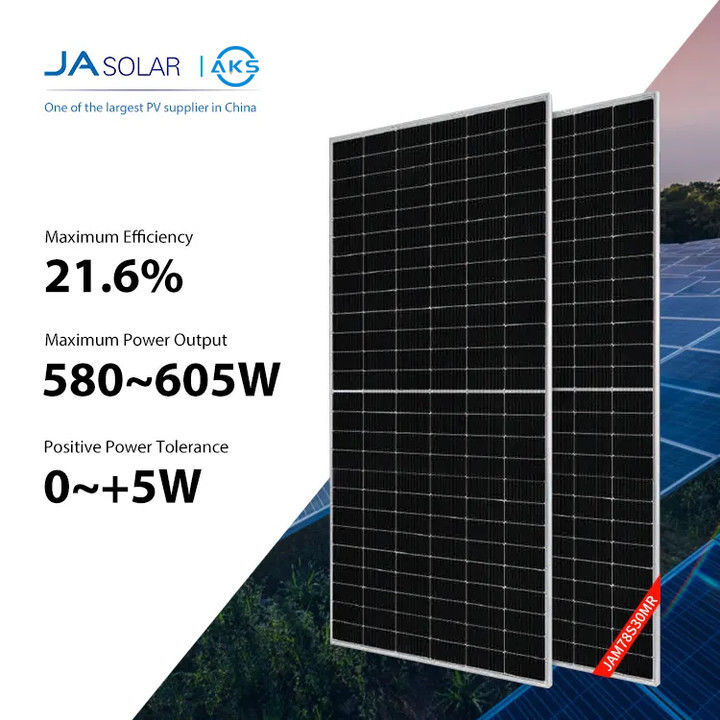

Model Number	JAM78S30MR(580-605W)

Model No.	JAM78S30-580/MR	JAM78S30-585/MR	JAM78S30-590/MR	JAM78S30-595/MR	JAM78S30-600/MR	JAM78S30-605/MR
Warranty
Product Warranty	12 Years
Power Warranty	15 Years of 90.3% Output Power, 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax)	580 Wp	585 Wp	590 Wp	595 Wp	600 Wp	605 Wp
Voltage at Maximum Power (Vmpp)	44.35 V	44.56 V	44.8 V	45.05 V	45.3 V	45.53 V
Current at Maximum Power (Impp)	13.08 A	13.13 A	13.17 A	13.21 A	13.25 A	13.29 A
Open Circuit Voltage (Voc)	53.11 V	53.2 V	53.3 V	53.4 V	53.5 V	53.61 V
Short Circuit Current (Isc)	13.84 A	13.88 A	13.93 A	13.98 A	14.03 A	14.08 A
Panel Efficiency	20.70%	20.90%	21.10%	21.30%	21.50%	21.60%
Power Tolerance (Positive)	1%	1%	1%	1%	1%	1%
	Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)	438 Wp	442 Wp	446 Wp	450 Wp	454 Wp	458 Wp
Voltage at Maximum Power (Vmpp)	42.55 V	42.69 V	42.82 V	42.94 V	43.07 V	43.21 V
Current at Maximum Power (Impp)	10.3 A	10.36 A	10.42 A	10.48 A	10.54 A	10.6 A
Open Circuit Voltage (Voc)	50.45 V	50.59 V	50.72 V	50.86 V	51.01 V	51.17 V
Short Circuit Current (Isc)	11.02 A	11.07 A	11.13 A	11.9 A	11.25 A	11.3 A
Temperature	45±2 °C
	Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range	40~85 °C
Temperature Coefficient of Pmax	0.35 %/°C
Temperature Coefficient of Voc	0.275 %/°C
Temperature Coefficient of Isc	0.045 %/°C
Maximum Ratings
Maximum System Voltage	1500 V
Series Fuse Rating	25 A
Material Data
Panel Dimension (H/W/D)	2465x1134x35 mm
Weight	30.5 kg
Cell Type	PERC
Cell Number	156
Junction Box Diodes	3
Junction Box Protection Class	IP 68
Connector Type	MC4
Cable Crossection	4 mm2
Cable Length	1500 mm

Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
