Rooftop Solar Panel
>
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Model Number | BiHiKu6-CS6W-MB-AG |
Welcome to our website, where we showcase our exceptional rooftop solar panel solutions, designed to help you harness the power of the sun and transform your energy consumption. Rooftop solar panels are an increasingly popular choice for homeowners and businesses alike, seeking a clean, renewable, and cost-effective energy source. Our rooftop solar panels are engineered using advanced technology and premium materials to ensure optimal performance, durability, and return on investment. By choosing our rooftop solar panels, you can experience the numerous benefits of solar energy while reducing your carbon footprint and energy costs.
Lower BOS cost & LCOE cost
· Reduce 5.7% BOS cost
· 3.5% lower LCOE
· Compatible with mainstream inverters
Enhanced reliability
· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
· Excellent hot spot performance
· Better shading tolerance

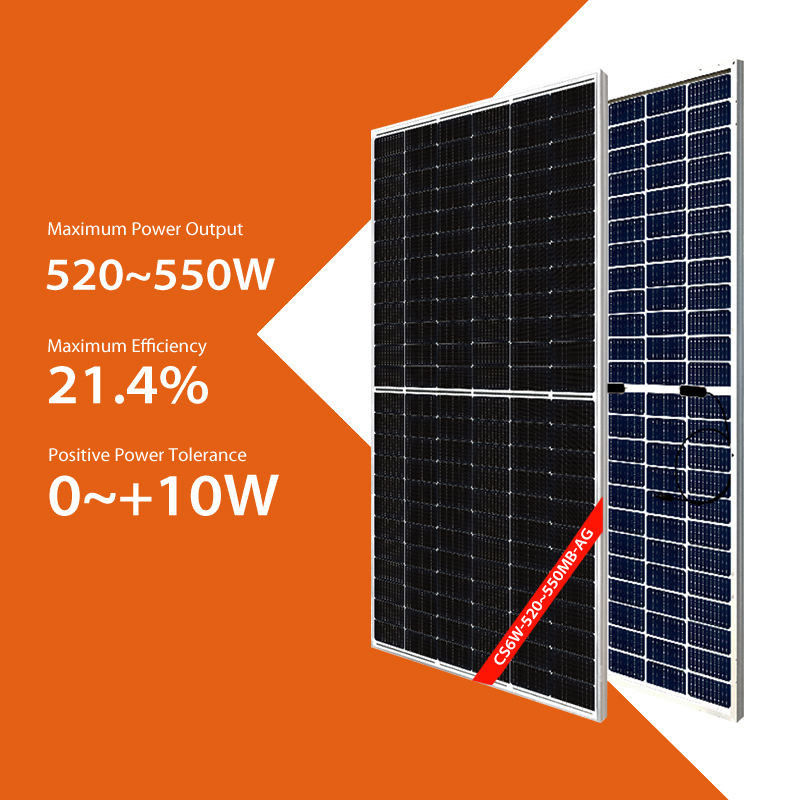

| Model No. | CS6W-520MB-AG | CS6W-525MB-AG | CS6W-530MB-AG | CS6W-535MB-AG | CS6W-540MB-AG | CS6W-545MB-AG | CS6W-550MB-AG |
| Warranty | |||||||
| Product Warranty | 12 Years | ||||||
| Power Warranty | 30 Years of 84.95% Output Power | ||||||
| Electrical Data at STC | |||||||
| Maximum Power (Pmax) | 520 Wp | 525 Wp | 530 Wp | 535 Wp | 540 Wp | 545 Wp | 550 Wp |
| Voltage at Maximum Power (Vmpp) | 40.5 V | 40.7 V | 40.9 V | 41.1 V | 41.3 V | 41.5 V | 41.7 V |
| Current at Maximum Power (Impp) | 12.84 A | 12.9 A | 12.96 A | 13.02 A | 13.08 A | 13.14 A | 13.2 A |
| Open Circuit Voltage (Voc) | 48.4 V | 48.6 V | 48.8 V | 49 V | 49.2 V | 49.4 V | 49.6 V |
| Short Circuit Current (Isc) | 13.7 A | 13.75 A | 13.8 A | 13.85 A | 13.9 A | 13.95 A | 14 A |
| Panel Efficiency | 20.20% | 20.40% | 20.60% | 20.80% | 21% | 21.20% | 21.40% |
| Power Tolerance (Positive) | 2% | 2% | 2% | 2% | 2% | 2% | 2% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||||
| Electrical Data at NOCT | |||||||
| Maximum Power (Pmax) | 390 Wp | 394 Wp | 397 Wp | 401 Wp | 405 Wp | 409 Wp | 412 Wp |
| Voltage at Maximum Power (Vmpp) | 38 V | 38.2 V | 38.3 V | 38.5 V | 38.7 V | 38.9 V | 39.1 V |
| Current at Maximum Power (Impp) | 10.27 A | 10.32 A | 10.38 A | 10.42 A | 10.47 A | 10.52 A | 10.55 A |
| Open Circuit Voltage (Voc) | 45.7 V | 45.9 V | 46.1 V | 46.3 V | 46.5 V | 46.7 V | 46.9 V |
| Short Circuit Current (Isc) | 11.05 A | 11.09 A | 11.13 A | 11.17 A | 11.21 A | 11.25 A | 11.29 A |
| Temperature | 41±3 °C | ||||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||||
| Thermal Ratings | |||||||
| Operating Temperature Range | 40~85 °C | ||||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||||
| Temperature Coefficient of Voc | 0.26 %/°C | ||||||
| Temperature Coefficient of Isc | 0.05 %/°C | ||||||
| Maximum Ratings | |||||||
| Maximum System Voltage | 1500 V | ||||||
| Series Fuse Rating | 30 A | ||||||
| Material Data | |||||||
| Panel Dimension (H/W/D) | 2266x1134x30 mm | ||||||
| Weight | 32.1 kg | ||||||
| Cell Type | PERC, Bifacial | ||||||
| Cell Number | 144 | ||||||
| Glass Type | Anti-reflection Coating | ||||||
| Glass Thickness | 2 mm | ||||||
| Frame Type | Anodized Aluminium Alloy | ||||||
| Junction Box Diodes | 3 | ||||||
| Junction Box Protection Class | IP 68 | ||||||
| Connector Type | MC4 | ||||||
| Cable Crossection | 4 mm2 | ||||||
| Cable Length | 410 mm | ||||||
