Jinko Solar Panel
>
|
| Place of Origin | Jiangsu, China |
| Brand Name | AKS |
| Certification | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |

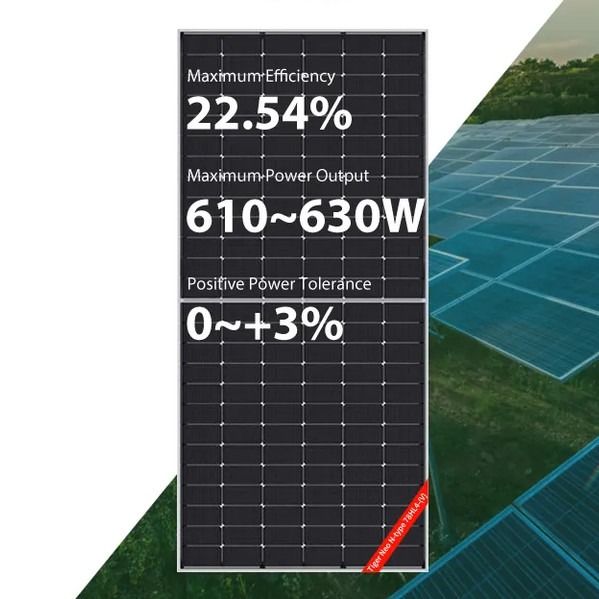

| Model Number | Tiger Neo N-type 78HL4-(V)(610-630 Watt) |
The long-term durability of PERC solar panels is another advantage that sets them apart from conventional solar panels. The passivation layer added to the rear side of the cell not only enhances efficiency but also provides additional protection against environmental factors such as moisture, dust, and UV radiation. This added protection contributes to the overall longevity of the panel, ensuring that it continues to generate electricity efficiently for an extended period. With a typical lifespan of 25-30 years, PERC solar panels provide a reliable and long-lasting renewable energy source for homeowners and businesses.
| Model No. | JKM610N-78HL4/JKM610N-78HL4-V | JKM615N-78HL4/JKM615N-78HL4-V | JKM620N-78HL4/JKM620N-78HL4-V | JKM625N-78HL4/JKM625N-78HL4-V | JKM630N-78HL4/JKM630N-78HL4-V |
| Warranty | |||||
| Product Warranty | 12 Years | ||||
| Power Warranty | 30 Years of 87.4% Output Power | ||||
| Electrical Data at STC | |||||
| Maximum Power (Pmax) | 610 Wp | 615 Wp | 620 Wp | 625 Wp | 630 Wp |
| Voltage at Maximum Power (Vmpp) | 45.59 V | 45.69 V | 45.79 V | 45.92 V | 46.02 V |
| Current at Maximum Power (Impp) | 13.38 A | 13.46 A | 13.54 A | 13.61 A | 13.69 A |
| Open Circuit Voltage (Voc) | 55.25 V | 55.4 V | 55.55 V | 55.7 V | 55.85 V |
| Short Circuit Current (Isc) | 14.11 A | 14.18 A | 14.25 A | 14.32 A | 14.39 A |
| Panel Efficiency | 21.82% | 22% | 22.18% | 22.36% | 22.54% |
| Power Tolerance (Positive) | 3% | 3% | 3% | 3% | 3% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||
| Electrical Data at NOCT | |||||
| Maximum Power (Pmax) | 459 Wp | 462 Wp | 466 Wp | 470 Wp | 474 Wp |
| Voltage at Maximum Power (Vmpp) | 42.28 V | 42.39 V | 42.5 V | 42.61 V | 42.72 V |
| Current at Maximum Power (Impp) | 10.85 A | 10.91 A | 10.97 A | 11.03 A | 11.09 A |
| Open Circuit Voltage (Voc) | 52.48 V | 52.62 V | 52.77 V | 52.91 V | 53.05 V |
| Short Circuit Current (Isc) | 11.39 A | 11.45 A | 11.5 A | 11.56 A | 11.62 A |
| Temperature | 45±2 °C | ||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||
| Thermal Ratings | |||||
| Operating Temperature Range | 40~85 °C | ||||
| Temperature Coefficient of Pmax | 0.3 %/°C | ||||
| Temperature Coefficient of Voc | 0.25 %/°C | ||||
| Temperature Coefficient of Isc | 0.046 %/°C | ||||
| Maximum Ratings | |||||
| Maximum System Voltage | 1500 V | ||||
| Series Fuse Rating | 25 A | ||||
| Material Data | |||||
| Panel Dimension (H/W/D) | 2465x1134x35 mm | ||||
| Weight | 30.6 kg | ||||
| Cell Type | Monocrystalline | ||||
| Cell Number | 156 | ||||
| Glass Type | Anti-reflection Coating, Tempered | ||||
| Glass Thickness | 3.2 mm | ||||
| Frame Type | Anodized Aluminium Alloy | ||||
| Junction Box Protection Class | IP 68 | ||||
| Cable Crossection | 4 mm2 | ||||
