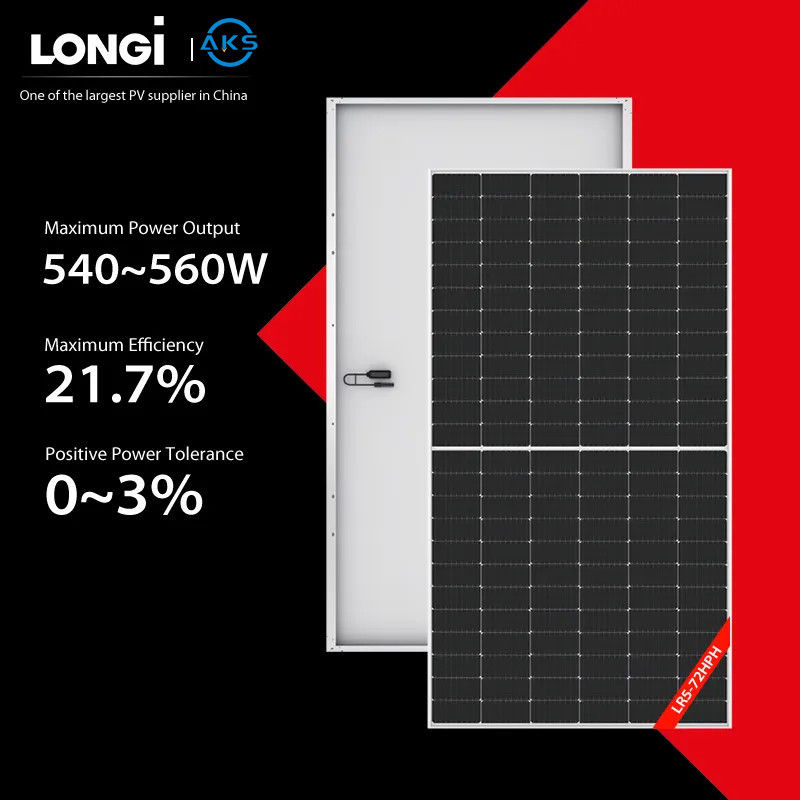

540W 545W Longi Solar Panel 555W 560W Transparent Photovoltaic Cells For Rooftop
  • 540W 545W Longi Solar Panel 555W 560W Transparent Photovoltaic Cells For Rooftop
  • 540W 545W Longi Solar Panel 555W 560W Transparent Photovoltaic Cells For Rooftop
540W 545W Longi Solar Panel 555W 560W Transparent Photovoltaic Cells For Rooftop

540W 545W Longi Solar Panel 555W 560W Transparent Photovoltaic Cells For Rooftop

Place of Origin Jiangsu, China
Brand Name AKS
Certification CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Model Number LR5-72HPH
Product Details
Brand Name:
Longi
Max. Power:
560W
Material:
Monocrystalline Silicon
Power Range:
540W-560W
Number Of Cells:
144 Cells
Customization:
Customized Logo(Min. Order 100000 Watts) Customized Packaging(Min. Order 100000 Watts) Graphic Customization(Min. Order 100000 Watts)
Type:
PERC, Half Cell, PERC
Panel Efficiency:
21.7%
Certificate:
CE TUV IEC, TUV CE IEC
Panel Dimensions:
2278*1134*35mm
Cell Size:
166*166mm
High Light:

540W 545W Longi Solar Panel

,

Longi Solar Panel 555W

,

560W Transparent Photovoltaic Cells For Rooftop

Payment & Shipping Terms
Minimum Order Quantity
1
Price
To be negotiated
Packaging Details
pallet
Delivery Time
To be negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200000 Watt/Watts per Week
Product Description

Longi 540W 545W 550W 555W 560W Power Solar Panels For Rooftop Solar Power System Zonnepanelen Transparent

High Efficiency: Longi solar panels are known for their high conversion efficiency, allowing them to generate more electricity from the available sunlight. These high-power panels incorporate advanced cell technologies, such as PERC (Passivated Emitter Rear Contact), to enhance light absorption and electron capture, resulting in improved overall performance.



Durability and Weather Resistance: Longi solar panels are built to withstand various environmental conditions, ensuring long-term reliability and performance. They are designed to resist factors such as moisture, temperature fluctuations, and potential-induced degradation, ensuring the panels can withstand the elements and maintain their efficiency over time.



Versatile Installation: The Longi 540W, 545W, 550W, 555W, and 560W power solar panels can be installed in different configurations and orientations, allowing for flexibility in system design and integration. They are compatible with standard mounting systems, making installation easier and more convenient.



Certifications and Standards: Longi solar panels often carry industry certifications such as IEC, TUV, UL, and other relevant certifications, ensuring compliance with international safety and performance standards. These certifications validate the quality and reliability of the panels.



Model Number
LR5-72HPH-540M
LR5-72HPH-545M
Testing Condition
STC
NOCT
STC
NOCT
Maximum Power(Pmax/W)
540
403.6
545
407.4
Open Circuit Voltage(Voc/V)
49.5
46.54
49.65
46.68
Short Circuit Current(lsc/aA)
13.85
11.2
13.92
11.25
Voltage at Maximum Power(Vmp/V)
41.65
38.69
41.80
38.83
Current at Maximum Power(Imp/A)
12.97
10.43
13.04
10.49
Module Efficiency(%)
20.9
21.1
Model Number
LR5-72HPH-550M
LR5-72HPH-555M
Testing Condition
STC
NOCT
STC
NOCT
Maximum Power(Pmax/W)
550
411.1
555
414.8
Open Circuit Voltage(Voc/V)
49.8
46.82
49.95
46.97
Short Circuit Current(lsc/aA)
13.98
11.31
14.04
11.35
Voltage at Maximum Power(Vmp/V)
41.95
38.97
42.10
39.11
Current at Maximum Power(Imp/A)
13.12
10.56
13.19
10.61
Module Efficiency(%)
21.3
21.5
Model Number
LR5-72HPH-560M


Testing Condition
STC
NOCT


Maximum Power(Pmax/W)
560
418.6


Open Circuit Voltage(Voc/V)
50.1
47.11


Short Circuit Current(lsc/aA)
14.1
11.4


Voltage at Maximum Power(Vmp/V)
42.25
39.25


Current at Maximum Power(Imp/A)
13.26
10.67







540W 545W Longi Solar Panel 555W 560W Transparent Photovoltaic Cells For Rooftop 0







540W 545W Longi Solar Panel 555W 560W Transparent Photovoltaic Cells For Rooftop 1



540W 545W Longi Solar Panel 555W 560W Transparent Photovoltaic Cells For Rooftop 2

540W 545W Longi Solar Panel 555W 560W Transparent Photovoltaic Cells For Rooftop 3540W 545W Longi Solar Panel 555W 560W Transparent Photovoltaic Cells For Rooftop 4



FAQ
Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc


Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
